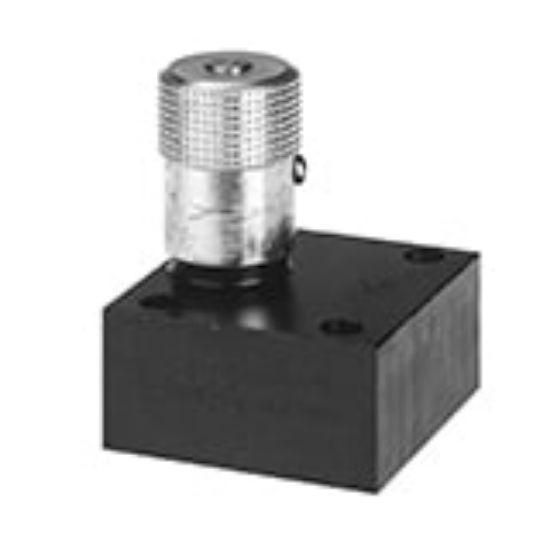

NS1200S - Needle Valve, Subplate Mounted – NS Series

Parker's NS series needle valve provides excellent speed control and shutoff for hydraulic applications where a free reverse-flow check is not needed.

Availability:	Backordered Estimated Lead Time: 98 days
Partner Available:	Backordered

SKU NS1200S

$2,765.60/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Needle option	Standard
Knob Option	Standard	Port Size	3/4"
Seal Material	Nitrile	Valve Material	Steel
Maximum Operating Pressure	3000 psi	Connection Type	NPT
Connection Size	3/4"	Maximum Flow Rate	25 Gal/min
Minimum Operating Temperature	-40 °F	Body Material	Steel
Product Style	Needle Valve	For Fluid Type	Hydraulic Oil
Seal Material	Nitrile	Mounting Type	Subplate
Actuation Type	Hydraulic Pressure	Maximum Operating Temperature	+200 °F
