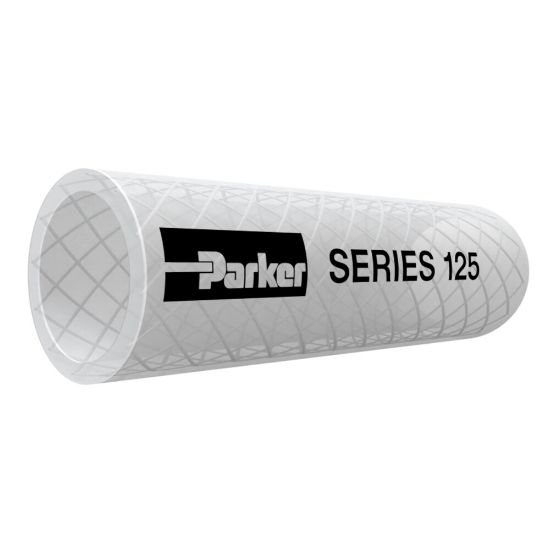

125-03000300 - NEXBRAID® PVC Clear Standard Wall General Service Hose, Series 125

Nexbraid PVC Clear Standard Wall General Service Hose is designed for transfer of abrasives, air, food particulates, sanitary products and potable water in applications to 150°F and 250 psi, Series 125

Availability:	Backordered Estimated Lead Time: 84 days
Partner Available:	Backordered

SKU 125-03000300

$0.84/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/16
Maximum Working Pressure (psi)	250	Specifications Met	NSF 51 (certified to 180°F / 82°C)
Package Type	Coil	Vacuum Pressure Rating	Light
Hose Inner Tube Material	PVC	Maximum Operating Temperature	65 °C
Minimum Operating Temperature	25 °F	Maximum Operating Pressure	250 psi
Cover Color	Blue	Media	Food Abrasive Powders (Granules)
Weight	0.05 lb/ft	Cover Material	PVC
Cover Structure	Smooth	Inside Diameter	4.8 mm
Outside Diameter	0.380 inch	Length per Package	300 ft
Minimum Bend Radius	n/a	Hose Reinforcement Material	2 Plies of Textile

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
