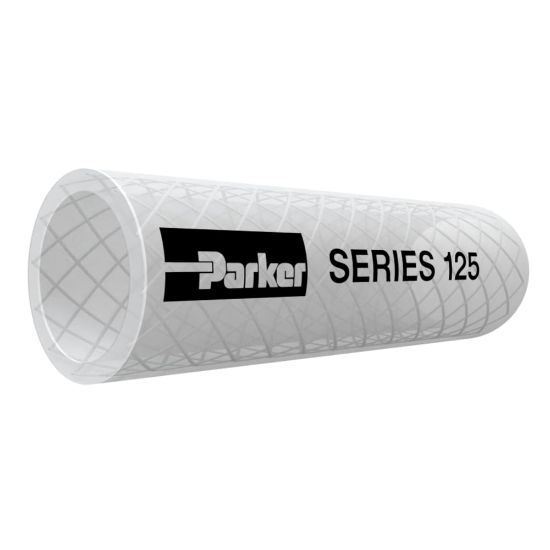

125-16000200 - NEXBRAID® PVC Clear Standard Wall General Service Hose, Series 125

Nexbraid PVC Clear Standard Wall General Service Hose is designed for transfer of abrasives, air, food particulates, sanitary products and potable water in applications to 150°F and 250 psi, Series 125

Availability:	Backordered Estimated Lead Time: 84 days
Partner Available:	1795 in stock

SKU 125-16000200

$4.29/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1
Maximum Working Pressure (psi)	125	Specifications Met	USP Class VI
Package Type	Coil	Vacuum Pressure Rating	Light
Hose Inner Tube Material	Clear	Maximum Operating Temperature	65 °C
Minimum Operating Temperature	-5 °C	Cover Color	Blue
Media	Food Abrasive Powders (Flour, Grains, Granules, Pellets, Sugar)	Weight	0.46 kg/m
Cover Material	PVC	Cover Structure	Smooth
Inside Diameter	25.4 mm	Outside Diameter	1.3 inch
Length per Package	200 ft	Minimum Bend Radius	n/a
Maximum Operating Pressure	8.6 bar	Hose Reinforcement Material	2 Plies of Textile
