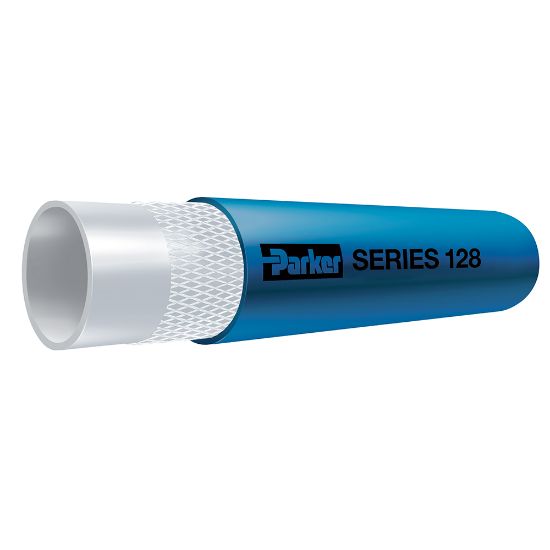

128-10006200 - NEXBRAID® PVC Potable Water By-Pass Hose, Series 128

Name: 128-10006200 - NEXBRAID® PVC Potable Water By-Pass Hose, Series 128
SKU: 128-10006200
Price: 2.49 USD
Availability: InStock

Nexbraid PVC Potable Water By-Pass Hose is designed as a temporary conduit for water supply during construction, maintenance and repair of pipe to 150°F and 250 psi, Series 128

Availability:

200 in stock

Springfield, MO

200

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 128-10006200

$2.49/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	5/8
Maximum Working Pressure (psi)	250 at 68F	Specifications Met	FDA
Media	Water (Potable Water)	Package Type	Coil
Maximum Operating Temperature	65 °C	Cover Color	Blue
Cover Material	PVC	Cover Structure	Smooth
Inside Diameter	15.9 mm	Length per Package	200 ft
Minimum Bend Radius	n/a	Maximum Operating Pressure	17.2 bar at 20°C
Hose Reinforcement Material	2 Plies of Textile	Weight	0.10 kg
Outside Diameter	0.931 inch	Hose Inner Tube Material	Clear/Blue Tint
Minimum Operating Temperature	-13 °F

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
