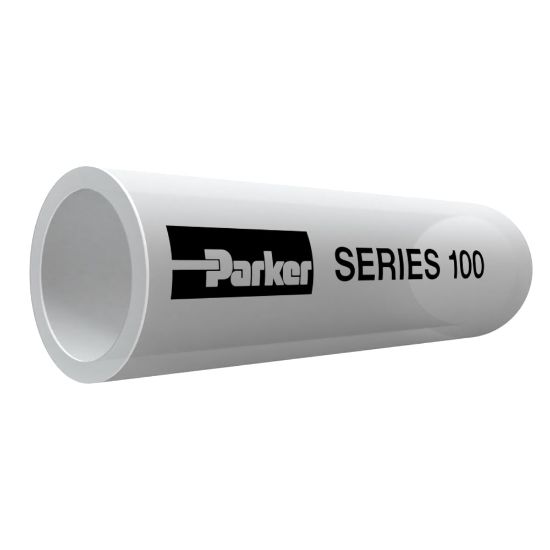

100-05080102 - NEXCLEAR® PVC Clear General Service Tubing, Series 100

Nexclear PVC Clear General Service Tubing is designed for transfer of abrasives, air, beverages, food particulates, sanitary products and potable water in applications to 150°F and 65 psi, Series 100

Availability:	Backordered Estimated Lead Time: 84 days
Partner Available:	Backordered

SKU 100-05080102

$0.68/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Tube I.D. (inch)	5/16
Tube O.D. (inch)	1/2	Maximum Working Pressure (psi)	55
Specifications Met	NSF 51 (certified to 180°F / 82°C)	Color	Clear
Media	Water (Potable Water)	Weight	0.03 kg
Durometer	75 Shore A	Package Type	Coil
Length per Package	100 ft	Tube Inside Diameter	7.9 mm
Tube Outside Diameter	1/2 inch	Vacuum Pressure Rating	Light
Hose Inner Tube Material	PVC	Maximum Operating Pressure	3.8 bar
Maximum Operating Temperature	65 °C	Minimum Operating Temperature	-5 °C
