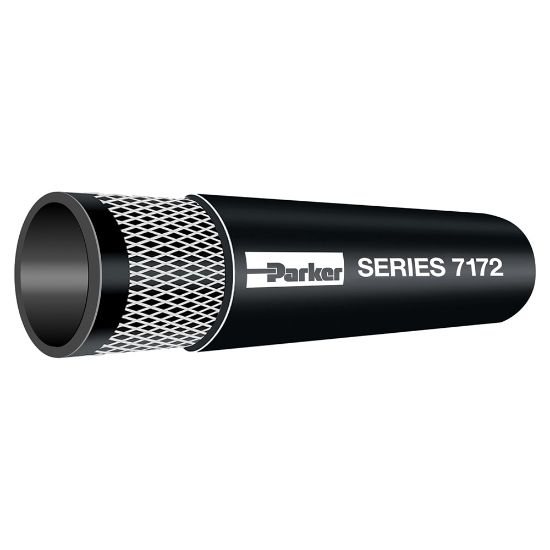

7172-19200 - Nonconductive Cable Cover Hose, Series 7172

Note: This product is no longer available - please contact us for further assistance

Availability:	Backordered Estimated Lead Time: 98 days
Partner Available:	Backordered

SKU 7172-19200

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/16
Maximum Working Pressure (psi)	200	Media	Air
Design Factor	4:1	Weight	0.06
Maximum Operating Temperature	212	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Minimum Operating Temperature	-20	Cover Color	Black
Hose Reinforcement Material	2 Plies of Textile	Maximum Operating Pressure	200
Package Type	Reel	Inside Diameter	3/16
Minimum Bend Radius	1.5	Length per Package	750
Outside Diameter	0.420	Hose Inner Tube Material	Nitrile/Styrene Butadiene Rubber (SBR) Blend

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
