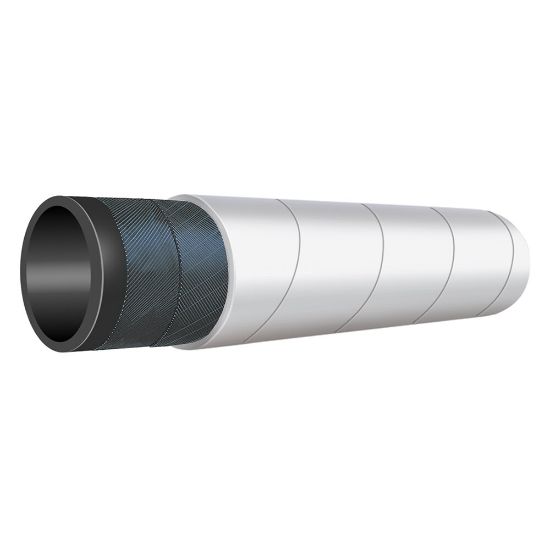

7385-0500 - Nonconductive Softwall Furnace Door Coolant Hose, Series 7385

Note: This product is no longer available - please contact us for further assistance

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 7385-0500

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Media	Water	Maximum Operating Temperature	100 °C
Inside Diameter	1/2 inch	Maximum Operating Pressure	150 psi
Weight	0.49 kg/m	Hose Reinforcement Material	4 Plies of Textile
Minimum Operating Temperature	-20 °F	Outside Diameter	24.6 mm
Hose Inner Tube Material	Styrene Butadiene Rubber (SBR)	Cover Color	Off-White
Cover Material	Aramid Fabric	Minimum Bend Radius	5 mm

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
