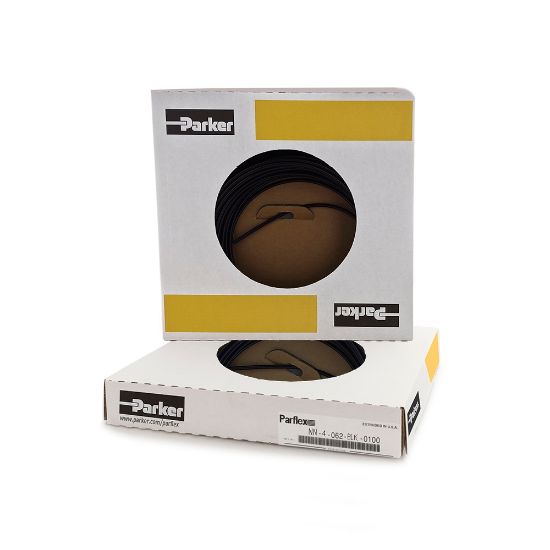

1120-4A-BLK-100 - Nylon Air Brake Tubing

Name: 1120-4A-BLK-100 - Nylon Air Brake Tubing
SKU: 1120-4A-BLK-100
Price: 1.18 USD
Availability: InStock

Parflex makes enough air brake tubing a year to circle the globe twice. Brake Line tubing provides excellent kink resistance. This means reduced, and or, eliminated kinked lines resulting in less rework at installation on semi-truck air lines.

Availability:

200 in stock

Springfield, MO

200

Partner Available:

3517 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 1120-4A-BLK-100

$1.18/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Tube O.D. (inch)	1/4
Color	Black	Standard Pack Qty (ft)	100 ft box
Minimum Operating Temperature	-40 °F	Media	Air
Size	-4	Cover Material	n/a
Color	Black	Tube Inside Diameter	0.17 inch
Tube Outside Diameter	6.4 mm	Cover Color	n/a
Weight	0.012 lb/ft	Tube Material	Polyamide (PA)
Compatible Fitting	PTC	Specifications Met	SAE J844
Minimum Bend Radius	25.4 mm	Minimum Burst Pressure	82.7 bar
Maximum Operating Pressure	10.3 bar	Maximum Operating Temperature	200 °F
