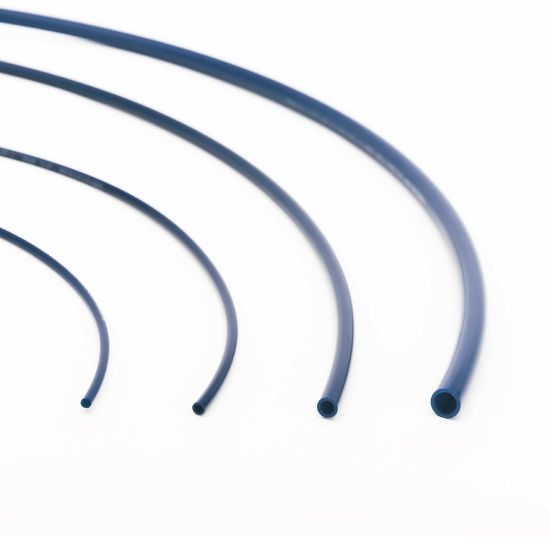

1120-4A-BLU-1000 - Nylon Air Brake Tubing

Name: 1120-4A-BLU-1000 - Nylon Air Brake Tubing
SKU: 1120-4A-BLU-1000
Price: 0.92 USD
Availability: InStock

Parflex makes enough air brake tubing a year to circle the globe twice. Brake Line tubing provides excellent kink resistance. This means reduced, and or, eliminated kinked lines resulting in less rework at installation on semi-truck air lines.

Availability:

3273 in stock

Kansas City, KS

3,273

Partner Available:

32067 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 1120-4A-BLU-1000

$0.92/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Tube O.D. (inch)	1/4
Color	Blue	Standard Pack Qty (ft)	1000
Minimum Operating Temperature	-40 °F	Media	Air
Size	-4	Cover Material	n/a
Color	Blue	Tube Outside Diameter	0.25 inch
Cover Color	n/a	Weight	0.018 kg/m
Tube Material	Polyamide (PA)	Compatible Fitting	Air Brake
Specifications Met	SAE J844	Minimum Bend Radius	25.4 mm
Tube Inside Diameter	4.3 mm	Minimum Burst Pressure	1200 psi
Maximum Operating Pressure	10.3 bar	Maximum Operating Temperature	200 °F
