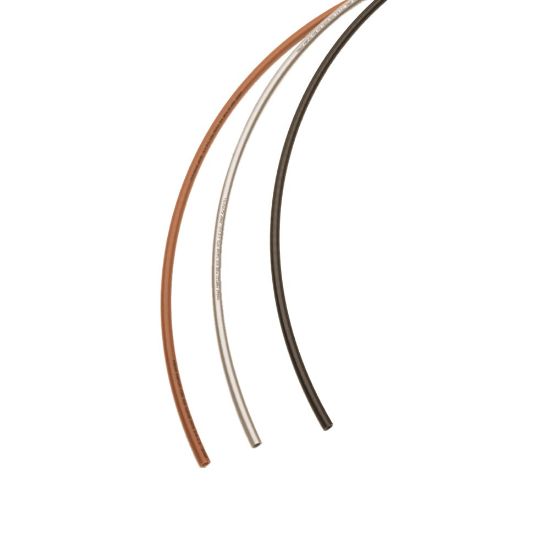

Picture of Nylon Pure Air Tubing - PAT4-BLK-1000

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Nylon Pure Air Tubing - PAT4-BLK-1000

Nylon Pure Air Tubing has exceptional cleanliness properties and superior chemical and UV light resistance. Ideal choice for pure air and gas distribution systems.
Availability:
Backordered
SKU PAT4-BLK-1000
$1.29
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTStandard Pack Qty (ft)1000
Order Size1/4ColorBlack
ApplicationProcess Piping SystemsTube Outside Diameter1/4 inch
Length per Package304.8 mMaximum Operating Pressure20.7 bar
Minimum Bend Radius1 inchDivisionParflex Division
Weight0.018 kg/mMinimum Burst Pressure82.7 bar
Tube MaterialPolyamide (PA)MediaIndustrial Gases
Minimum Operating Temperature-57 °CMaximum Operating Temperature93 °C
Tube Inside Diameter4.3 mmSize-4
Specifications MetN/ACompatible FittingNTA®
Cover Materialn/a
