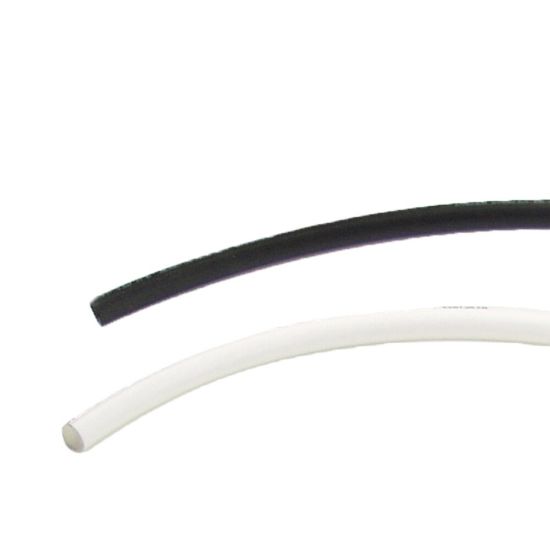

NBR-2-026 - Nylon Tubing - NR Series

High Strength Nylon Tubes - NR Series Polyamide Tubing features low moisture absorption and better chemical resistance than Series N Nylon Tubing.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	1607 in stock

SKU NBR-2-026

$0.69/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Black
Order Size	1/8	Standard Pack Qty (ft)	500
Tube Outside Diameter	1/8 inch	Tube Material	Polyamide (PA)
Maximum Operating Temperature	93 °C	Tube Inside Diameter	0.073 inch
Minimum Operating Temperature	-60 °F	Length per Package	34.8 m
Weight	0.006 kg/m	Minimum Bend Radius	0.38 inch
Minimum Burst Pressure	2500 psi	Cover Color	n/a
Specifications Met	N/A	Compatible Fitting	Compress-Align®
Size	-2	Cover Material	n/a
Media	Water	Maximum Operating Pressure	625 psi
