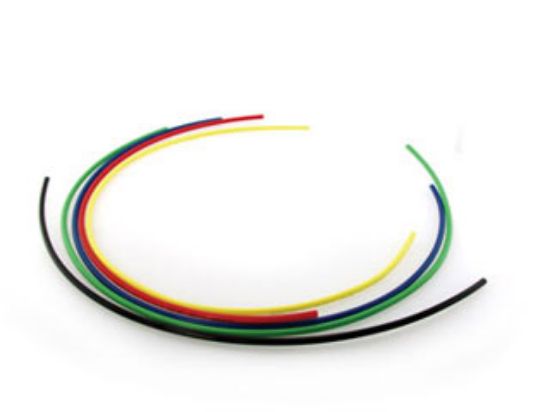

Nylon Tubing - NR Series - NNR-2-017

Name: Nylon Tubing - NR Series - NNR-2-017
SKU: NNR-2-017

High Strength Nylon Tubes - NR Series Polyamide Tubing features low moisture absorption and better chemical resistance than Series N Nylon Tubing.

Availability:

Backordered

SKU NNR-2-017

$0.49

Products specifications

Attribute name	Attribute value
UOM	FT	Standard Pack Qty (ft)	500
Order Size	1/8	Color	Natural
Compatible Fitting	Compression	Minimum Operating Temperature	-60 °F
Cover Color	n/a	Specifications Met	N/A
Weight	0.003 lb/ft	Division	Parflex Division
Tube Material	Polyamide (PA)	Maximum Operating Pressure	29.3 bar
Tube Inside Diameter	0.091 inch	Minimum Burst Pressure	1700 psi
Size	-2	Cover Material	n/a
Media	Water	Minimum Bend Radius	0.50 inch
Application	Pneumatics	Length per Package	34.8 m
Tube Outside Diameter	1/8 inch	Maximum Operating Temperature	93 °C
Color	Natural	Material	Nylon
Wall Thickness	0.017 Inch	Pkg Qty	500
UOM	FT	Outer Diameter 1	1/8 Inch
Max Pressure	425 PSI (30 bar)	Pkg Qty/UOM	500 FT
Inner Diameter	0.091 Inch	Material	Nylon
Series	N	Color	Natural
Outer Diameter	1/8 Inch	Trade Name	Parflex
Inner Diameter	0.091 Inch	Parker Group	Fluid Connector
Outer Diameter Inch/mm	Inch	Inch/Metric	Inch
Wall Thickness	0.017 Inch	Distinct Properties	Chemical Resistant
Max Pressure Range	250 to 499 PSI (17 to 34 bar)	Parker Division	Parflex
Application	Pneumatic	Inner Diameter Inch/mm	Inch
Wall Thickness Inch/mm	Inch
