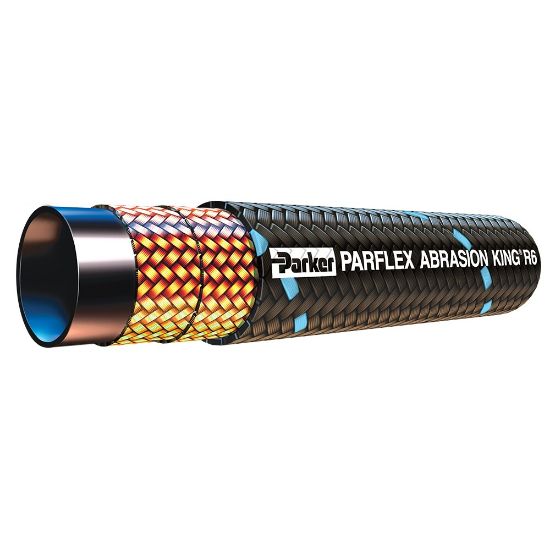

R606-500 - OBSOLETE: 100R17 Hose - R6

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU R606-500

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Length	500	Maximum Operating Pressure	3000
Media	Lubricants	Size	-6
Hose Inner Tube Material	Copolyester	Maximum Operating Temperature	250
Specifications Met	SAE 100R17	Outside Diameter	0.690
Weight	0.20	Minimum Bend Radius	2-1/2
Compatible Fitting	HY Series	Cover Material	Nylon Fabric Abrasion Resistant
Minimum Operating Temperature	-70	Hose Reinforcement Material	1 or 2 Braids of High Tensile Steel Wire
Design Factor	4:1	Inside Diameter	3/8
