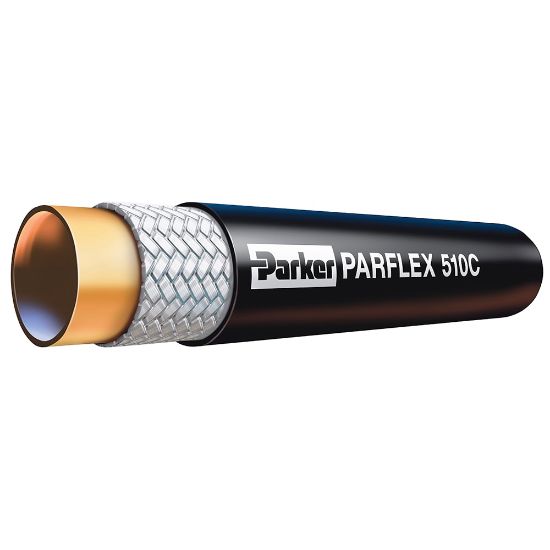

510C-4 - OBSOLETE: Flexible Hose - 510C

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	326 in stock

SKU 510C-4

$3.42/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Hose Style	Single	Minimum Operating Temperature	-40 °F
Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	Media	Air
Inside Diameter	6 mm	Minimum Bend Radius	38 mm
Maximum Operating Temperature	100 °C	Maximum Operating Pressure	20.7 MPa
Compatible Fitting	56 Series	Weight	0.08 kg/m
Outside Diameter	0.470 inch	Specifications Met	SAE 100R7
