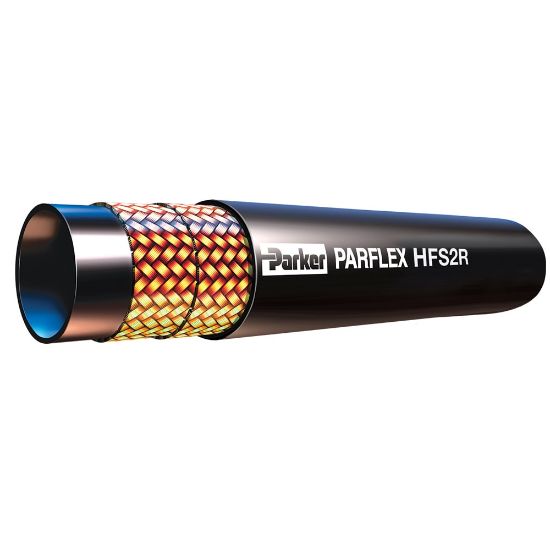

HFS2R04-500 - OBSOLETE: HFS2R Rubber-Covered Hydraulic Hose

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	32 in stock

SKU HFS2R04-500

$3.79/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Outside Diameter	0.540 inch	Minimum Bend Radius	2 inch
Specifications Met	MSHA	Maximum Operating Temperature	100 °C
Media	Petroleum Hydraulic Fluids	Hose Reinforcement Material	1 or 2 Braids of High Tensile Steel Wire
Cover Material	Synthetic Rubber	Cover Structure	Smooth
Inside Diameter	6 mm	Size	-4
Weight	0.2 lb/ft	Design Factor	4:1
Minimum Operating Temperature	-40 °C	Compatible Fitting	56 Series
Maximum Operating Pressure	35 MPa	Hose Inner Tube Material	Copolyester
