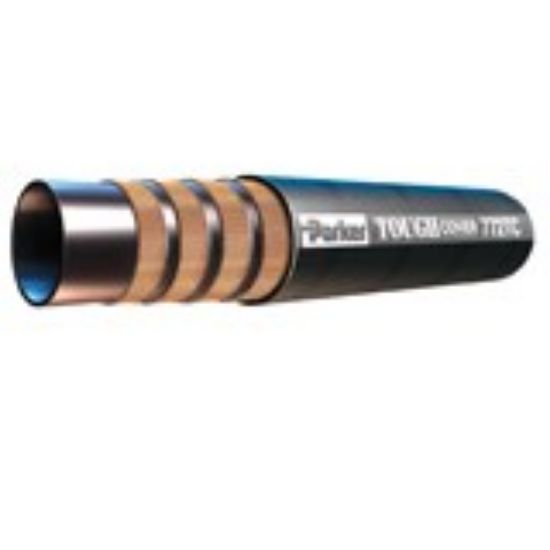

772TC-10 - OBSOLETE: Hydraulic Industry Standard Hose 2500-4000 PSI – 772 Hose

This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 772TC-10

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-10
Hose Cover Type	ToughCover	Minimum Operating Temperature	-40
Maximum Operating Pressure	4000	Inside Diameter	5/8
Outside Diameter	1.080	Cover Material	Synthetic Rubber Abrasion Resistant
Hose Inner Tube Material	Synthetic Rubber	Media	Lubricants
Specifications Met	ABS	Nominal Hose Inside Diameter	16
Maximum Operating Temperature	257	Weight	0.74
Compatible Fitting	71 Series	Hose Reinforcement Material	4 Spirals of Steel Wire
Minimum Bend Radius	200

Product resources

Literature and Reference Materials

Obsolescence Notification 06142018 (PDF)
