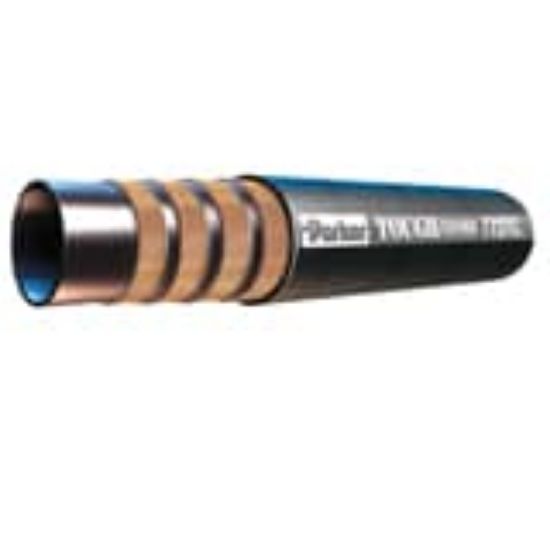

772TC-8 - OBSOLETE: Hydraulic Industry Standard Hose 2500-4000 PSI – 772 Hose

This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	65 in stock

SKU 772TC-8

$14.14/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-8
Hose Cover Type	ToughCover	Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	125 °C	Cover Material	Synthetic Rubber Abrasion Resistant
Inside Diameter	12.5 mm	Hose Inner Tube Material	Synthetic Rubber
Nominal Hose Inside Diameter	12 mm	Specifications Met	SAE J1942
Media	Lubricants	Maximum Operating Pressure	4000 psi
Minimum Bend Radius	7 inch	Outside Diameter	0.940 inch
Compatible Fitting	71 Series	Hose Reinforcement Material	4 Spirals of Steel Wire
Weight	0.93 kg/m

Product resources

Literature and Reference Materials

Obsolescence Notification 06142018 (PDF)
