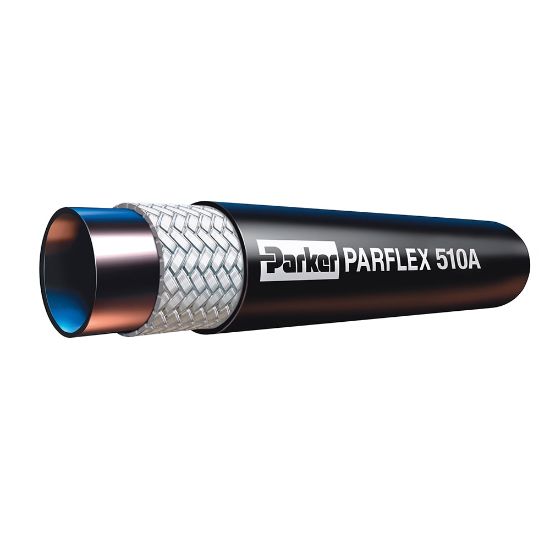

510A-4 - OBSOLETE: Refrigerant Hose - 510A

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	279 in stock

SKU 510A-4

$6.75/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Minimum Operating Temperature	-40	Design Factor	4:1
Maximum Operating Temperature	212	Cover Material	Polyurethane
Compatible Fitting	56 Series	Hose Reinforcement Material	Fiber
Inside Diameter	1/4	Minimum Bend Radius	2-1/2
Media	Coolants	Maximum Operating Pressure	2750
Weight	0.05	Outside Diameter	0.470
Specifications Met	SAE 100R7	Hose Inner Tube Material	Nylon Blend
