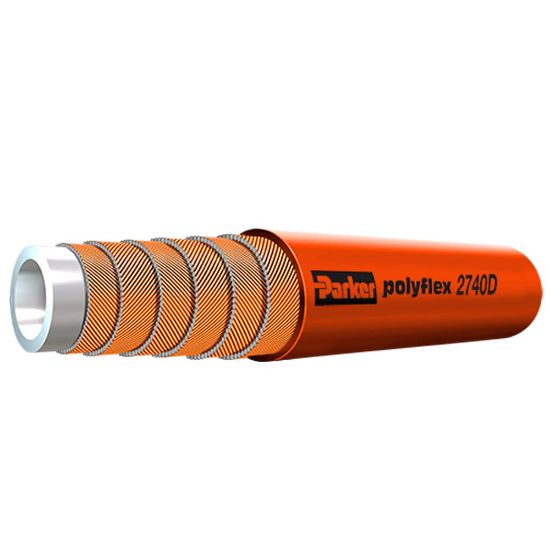

2740D-03V35 - OBSOLETE: Water Jetting Hose - 35,000 psi and up

Note: This product is no longer available – please contact us for further assistance.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	567 in stock

SKU 2740D-03V35

$22.24/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/16
Maximum Working Pressure (psi)	40,600	Notes	Obsolete - see PFX30-03
Minimum Operating Temperature	-10 °C	Media	Water
Maximum Operating Temperature	70 °C	Cover Material	Polyamide (PA)
Inside Diameter	4.8 mm	Design Factor	2.5:1
Specifications Met	DIN 1829-2	Hose Inner Tube Material	Polyoxymethylene (POM)
Size	-3	Outside Diameter	0.520 inch
Minimum Bend Radius	200 mm	Compatible Fitting	2X Series
Hose Reinforcement Material	6 Spirals of Maximum Tensile Steel Wire	Weight	0.32 kg/m
Maximum Operating Pressure	2800 bar

Product resources

Selector Guides

UHP Waterblast Selection Poster--4900-WB-Selection (PDF)
