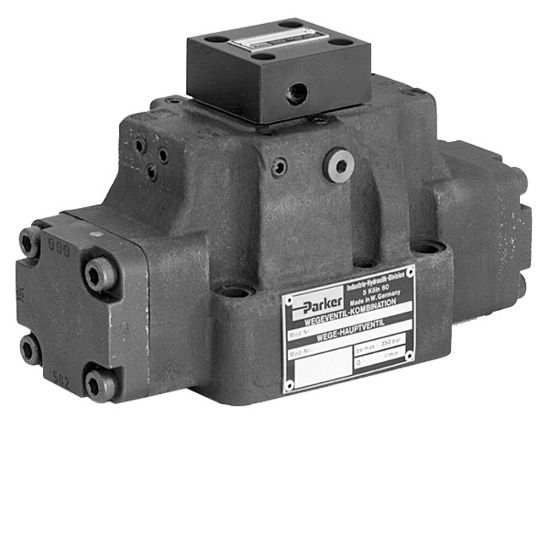

D8P2C2V - Oil Operated Directional Control Valve - D8P Series

Parker’s D8P directional control valves are 5-chamber, pilot operated valves.

Availability:	Backordered Estimated Lead Time: 112 days
Partner Available:	Backordered

SKU D8P2C2V

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	Up to 160 GPM depending on spool
Maximum Operating Pressure	5000 PSI	Size	NFPA DO8, CETOP 8, DIN NG25
Mounting Type	Subplate	Maximum Flow Rate	160
Spool Position	Double Operator, 3 position, spring centered	Options	n/a
Spool Code	4-way, 3 position; All Ports Open	Size	NFPA DO8, CETOP 8, DIN NG25
Valve Type	Oil Operated Directional Control Valve	Weight	41.7
Seal Material	Fluorocarbon	Maximum Operating Pressure	5000
Actuation Type	Hydraulic Pressure	Minimum Operating Temperature	-4
Mounting Type	Subplate, Manifold	Maximum Operating Temperature	+140
Body Material	Grey Iron

Product resources

Literature and Reference Materials

Oil Operated Directional Control Valve Catalog - D8P Series (PDF)
