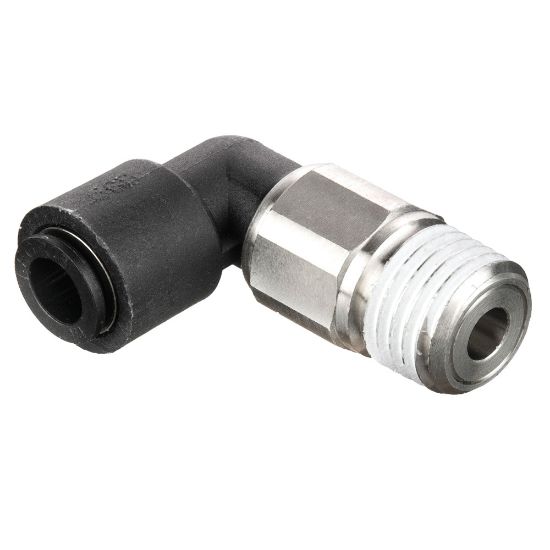

Picture of Oscillating Elbows - W369PLPO-10M-6R

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Oscillating Elbows - W369PLPO-10M-6R

Parker's push-to-connect oscillating elbows are designed for optimum reliability and durability preventing tube wear due to excessive flexing of the tubing.
Availability:
Backordered
SKU W369PLPO-10M-6R
$62.79
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 1 Tube Outside Diameter10 mm (O.D.)
ShapeElbow 90°Connection 2 TypeBSPT
Connection 2 Thread Size3/8"Gripping Ring MaterialStainless Steel
DivisionFluid System Connectors DivisionConnection 1 SizePush-to-connect
ApplicationAir, Cutting Fluids, Inert GasesProduct StyleTube to Pipe
Seal MaterialNitrileMaximum Operating Temperature175
Fitting MaterialGlass Reinforced Nylon 6.6Minimum Operating Temperature-4
Maximum Operating Pressure290Specifications MetISO 14743, DI: 97/23/EC, DI: 2002/95/EC, DI: 1907/2006
Body MaterialGlass Reinforced Nylon 6.6Tube MaterialNylon Semi-Rigid, Polyurethane 95 Durometer, Nylon, Fluoropolymer
