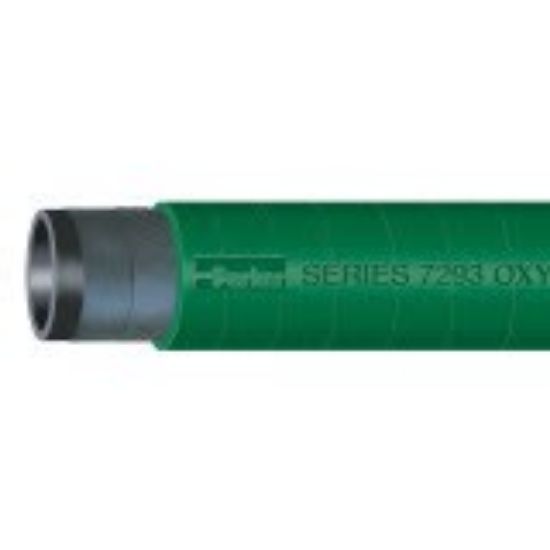

Picture of Oxygen Charging Hose, Series 7293 - 7293-1000

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Oxygen Charging Hose, Series 7293 - 7293-1000

Note: This product is no longer available - please contact us for further assistance
Availability:
Backordered
SKU 7293-1000
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)1
Maximum Operating Temperature80 °CDivisionHose Products Division
Specifications MetN/APackage TypeCoil
Length per Package100 ftCover ColorGreen
Inside Diameter25.4 mmMinimum Bend Radius4.5 inch
Minimum Operating Temperature-30 °CHose Reinforcement Material4 Plies of Textile
Cover MaterialChloroprene Rubber (CR)Maximum Operating Pressure34.5 bar
ApplicationCompressed GasCompatible Fitting7661 Series
Hose Inner Tube MaterialChloropreneMediaIndustrial Gases (Oxygen)
Cover StructureWrappedWeight0.31 kg
Outside Diameter38.8 mm
