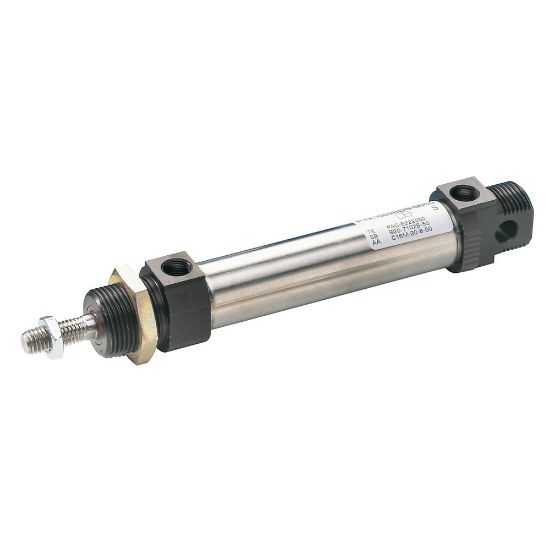

P1A-S025MS-0100

Manufacturer: Parker Hannifin

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU P1A-S025MS-0100

$180.81/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Stainless Steel
Style	Round Body	Series	P1A
Port Size	G1/8	Stroke Length	100 MM
Filtration Required	40 micron	Max. Pressure	145 psig
End Cap Material	Anodized Aluminum	Rod Material	Stainless Steel
Cushions	Cushioned, Adjustable Both Ends	Rod End Thread	M10X1.25
Magnetic Piston	Yes	Bumpers	No
Max. Temperature Range	176 °F	Seal Material	Fluorocarbon
Extension Force @ 87 PSI	66.1 lbs	Cylinder Type	Double Acting
Lubrication	Prelubricated	Min. Temperature Range	-4 °F
Rod Diameter	10 mm	Retraction Force @ 87 PSI	55.53 lbs
Bore Size	25 mm
