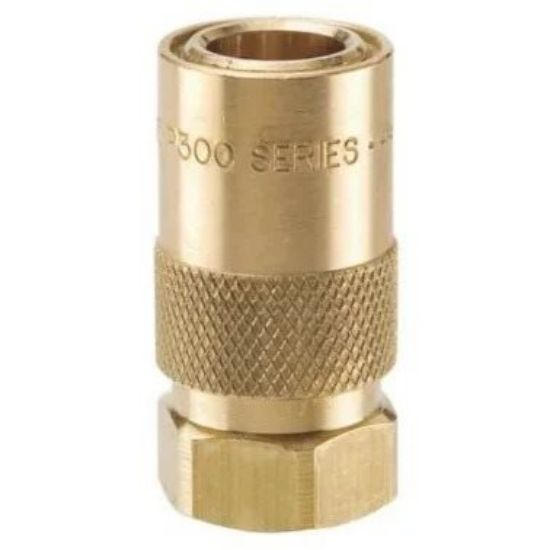

P308-01A

Moldmate series couplings are specifically designed for connectingcoolant lines to molds and dies on injection molding machinery and diecasting equipment. These couplings significantly reduce downtime, byproviding a quick and easy way to connect and disconnect lines duringmold changes.

Features:

• Rated pressure is 200 psi
• Valved and unvalved options. Valved couplers have silver colored sleeves
• Brass material with standard silicone interface seals are compatible with water and water glycol fluids. Valved versions have a fluorocarbon seal on the poppet.
• Optional fluorocarbon seal for use with oil based media
• Short nipples can be installed recessed below the mold surface enabling more efficient storage and protecting the nipple from damage
• Standard and Push-Lok hose barb ends are available in straight, 45 or 90 degree configurations
• Manual sleeve operation
• Extension nipples are offered in several lengths

Applications:

• Mold coolant lines
• Die casting equipment
