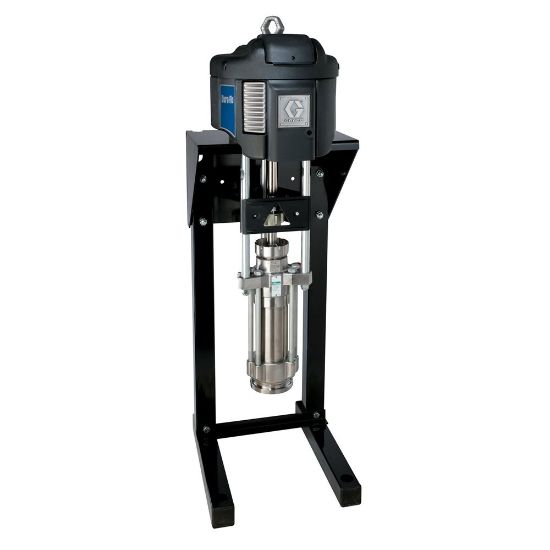

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

P46DSH

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU P46DSH

Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.

Features

Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
High pump pressure and flow performance to handle a broad range of paints and coatings
Improved serviceability with fewer parts, faster repairs and lower ownership cost
Monitor and protect your pump with DataTrak

Applications

Supply

Products specifications

Attribute name	Attribute value
UOM	EA	Fluid Section Type	2-Ball
Maximum Working Pressure	2380 psi	Mount Type	Wall or Stand
Fluid Outlet Thread Gender	Female	Fluid Outlet Size	3/4 Inch
Pump Ratio	46:1	Air Inlet Size	0.7506 Inch
Fluid Outlet Thread Type	NPT	Maximum Air Inlet Pressure	100 psi
Portable	No	Motor Type	De-Icing NXT
Maximum Continuous Cycle Rate	60 CPM	Seal Material	PTFE;Leather
Maximum Operating Temperature	150 deg F	Model	Dura-Flo
