P4CG2001C002

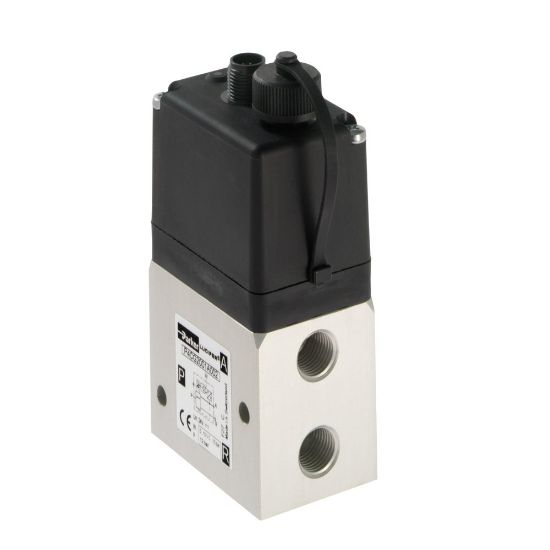

Parker P4CG2001C002 | Pressure Regulator | Port Size 1/4 Inch BSP | For Fluid Lubricated or Non Lubricated Air; Neutral Gases | Control Signal 4 - 20 mA

Availability:	Backordered Estimated Lead Time: 89 days
Partner Available:	Backordered

SKU P4CG2001C002

$3,658.97/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Regulating Pressure	10 bar
For Fluid Type	Lubricated or Non Lubricated Air, Neutral Gases	Maximum Pressure Differential	12 bar
Materials of Construction	Silicon free	Control Signal	4 - 20 mA
Maximum Flow Rate	70 m3/h	Operational Life	> 50 Million Changes of Control Signal Steps
Port Size	1/4 Inch BSP	Filter Efficiency Rating	50 Micron
Standard	EN 61000-6-1: 2001 , EN 61000-6-2: 2001 , EN 61000-6-3: 2001 , EN61000-6-4:2001	Hysteresis	± 50 mbar
Power Supply Voltage	24 VDC ± 15%	Minimum Pressure Differential	0 bar
Maximum Ambient Temperature	50 °C	Mounting Position	Indifferent (Recommended Position: Upright; Electronic Part on Top)
Minimum Ambient Temperature	'0 °C	Electrical Connection	M12 - 8 Pin; Male Connector Power Supply/Control Signal
Protection mode	IP65
