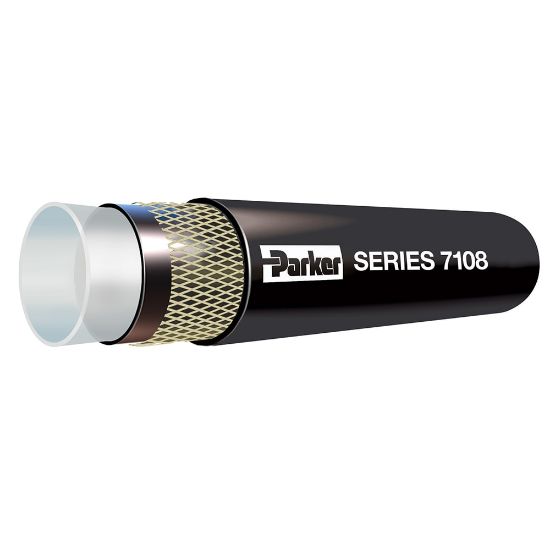

Picture of Paint Fluid Hose, Series 7108 - 7108-501

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Paint Fluid Hose, Series 7108 - 7108-501

Paint fluid hose is designed for transfer of high aromatic content products such as ketone solvents, lacquers, paint thinners, oil-based and water-based paints and many common chemicals used in applications to 200°F and 750 psi, Series 7108
Availability:
188 in stock
Olivette, MO188
SKU 7108-501
$6.27
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)1/2
Maximum Working Pressure (psi)750Hose I.D. (mm)12,7
Maximum Working Pressure (Bar)51,7DivisionHose Products Division
ApplicationChemical TransferSpecifications MetN/A
Minimum Operating Temperature-18 °CLength per Package500 ft
Minimum Bend Radius5 inchCover ColorBlack
Maximum Operating Temperature93 °CCover StructureSmooth
Inside Diameter12.7 mmMaximum Operating Pressure750 psi
Package TypeReelCompatible Fitting43 Series
Weight0.25 lb/ftCover MaterialChloroprene Rubber (CR)
Hose Reinforcement Material2 Plies of AramidOutside Diameter22.2 mm
MediaChemicals (Thinners)Hose Inner Tube MaterialTranslucent
LengthRandom lengths on reels. 182.88 m max., 121.9 m min, with 15.24 m min. length, max. 3 pcs. mTube MaterialTranslucent nylon
Hose Outside Diameter22,2 mmWeight (per unit of measure)0,36 kg/m
Hose Reinforcement Material & StructureMultiple aramid plies
