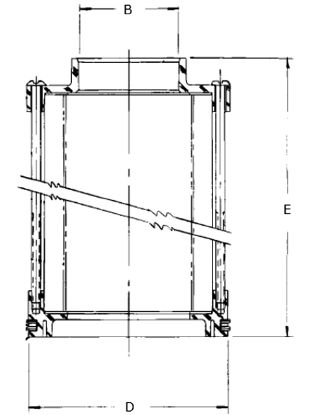

ParFit™ Interchange and Parker Replacement Element
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker with PartsGopher is the one-stop-shop for all your hydraulic filter element requirements. ParFit™ elements are manufactured to the same exacting standards as Parker original Hydraulic and Lube Oil elements. Reduce inventory, cut costs and ensure reliable and quality filter performance with Parker. Click here to visit our dedicated ParFit interchange page.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Pkg Qty | Seals | Efficiency βx(C) ≥ 200 | Efficiency βx(C) ≥ 1000 | Collapse Pressure (bar) | Collapse Pressure (psi) | Media | Media Type | Parker Group | Parker Division | Series | Seals | B Dimension | D Dimension | E Dimension | Efficiency βx(C) ≥ 200 | Efficiency βx(C) ≥ 1000 | Collapse Pressure (bar) | Collapse Pressure (psi) | Media Composition Detail | Top Endcap Material | Bottom Endcap Material | Inner Support Cylinder Material | Glue Side Seam Adhesive | Glue Endcaps Adhesive | Media | Media Type | Competitor | A Dimension | C Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 170-Z-122H | Backordered | Backordered | $130.15/each | EA | EA | 1 | FKM: Fluorocarbon | 9 µ | 12 µ | 20 bar | 290 psi | 10 Micron Absolute | Microglass | Filtration | Hydraulic Filter | ParFit | FKM: Fluorocarbon | 0.768 in (19.5 mm) | 2.181 in (55.4 mm) | 2.661 in (67.6 mm) | 9 µ | 12 µ | 20 bar | 290 psi | Multilayer fiberglass with epoxy coated mesh on both sides | Steel zinc plated | Steel zinc plated | Steel tin plated | Epoxy | Epoxy | 10 Micron Absolute | Microglass | ||||
| 170-Z-123H | Backordered | Backordered | POR | EA | EA | 1 | FKM: Fluorocarbon | 15.5 µ | 20 µ | 20 bar | 290 psi | 10 Micron Absolute | Microglass | Filtration | Hydraulic Filter | ParFit | FKM: Fluorocarbon | 0.768 in (19.5 mm) | 2.169 in (55.1 mm) | 2.661 in (67.6 mm) | 15.5 µ | 20 µ | 20 bar | 290 psi | Multilayer fiberglass with epoxy coated mesh on both sides | Steel zinc plated | Steel zinc plated | Steel tin plated | Epoxy | Epoxy | 10 Micron Absolute | Microglass | ||||
| 170-Z-220A | Backordered | Backordered | $170.17/each | EA | EA | 1 | NBR: Nitrile | 4 (nominal) µ | 5 µ | 20 bar | 290 psi | 2 Micron Absolute | Microglass | Filtration | Hydraulic Filter | ParFit | NBR: Nitrile | 0.768 in (19.5 mm) | 2.201 in (55.9 mm) | 4.799 in (121.9 mm) | 4 (nominal) µ | 5 µ | 20 bar | 290 psi | Multilayer fiberglass with epoxy coated mesh on both sides | Steel zinc plated | Steel zinc plated | Steel tin plated | Epoxy | Epoxy | 2 Micron Absolute | Microglass | AIRFIL | |||
| 170-Z-222A | Backordered | 4 in stock | $134.19/each | EA | EA | 1 | NBR: Nitrile | 9 µ | 12 µ | 20 bar | 290 psi | 10 Micron Absolute | Microglass | Filtration | Hydraulic Filter | ParFit | NBR: Nitrile | 0.768 in (19.5 mm) | 2.201 in (55.9 mm) | 4.799 in (121.9 mm) | 9 µ | 12 µ | 20 bar | 290 psi | Multilayer fiberglass with epoxy coated mesh on both sides | Steel zinc plated | Steel zinc plated | Steel tin plated | Epoxy | Epoxy | 10 Micron Absolute | Microglass | AIRFIL | |||
| 270-Z-122A | Backordered | 12 in stock | $164.44/each | EA | EA | 1 | NBR: Nitrile | 9 µ | 12 µ | 20 bar | 290 psi | 10 Micron Absolute | Microglass | Filtration | Hydraulic Filter | ParFit | NBR: Nitrile | 1.307 in (33.2 mm) | 1.307 in (33.2 mm) | 0.563 in (14.3 mm) | 9 µ | 12 µ | 20 bar | 290 psi | Multilayer fiberglass with epoxy coated mesh on both sides | Steel zinc plated | Steel zinc plated | Steel nickel plated | Epoxy | Epoxy | 10 Micron Absolute | Microglass | FBO | 2.902 in (73.7 mm) | ||
| 270-Z-123A | Backordered | 7 in stock | $119.37/each | EA | EA | 1 | NBR: Nitrile | 16 µ | 20 µ | 20 bar | 290 psi | 20 Micron Absolute | Microglass | Filtration | Hydraulic Filter | ParFit | NBR: Nitrile | 1.307 in (33.2 mm) | 1.307 in (33.2 mm) | 0.563 in (14.3 mm) | 16 µ | 20 µ | 20 bar | 290 psi | Multilayer fiberglass with epoxy coated mesh on both sides | Steel zinc plated | Steel zinc plated | Steel nickel plated | Epoxy | Epoxy | 20 Micron Absolute | Microglass | HYDEMA | 2.902 in (73.7 mm) | ||
| 270-Z-221A | Backordered | 2 Limited Stock | $212.56/each | EA | EA | 1 | NBR: Nitrile | 5 µ | 7 µ | 20 bar | 290 psi | 5 Micron Absolute | Microglass | Filtration | Hydraulic Filter | ParFit | NBR: Nitrile | 1.307 in (33.2 mm) | 1.307 in (33.2 mm) | 9.343 in (237.3 mm) | 5 µ | 7 µ | 20 bar | 290 psi | Multilayer fiberglass with epoxy coated mesh on both sides | Steel zinc plated | Steel zinc plated | Steel nickel plated | Epoxy | Epoxy | 5 Micron Absolute | Microglass | FBO | 2.902 in (73.7 mm) | ||
| 270-Z-222A | Backordered | Backordered | $162.19/each | EA | EA | 1 | NBR: Nitrile | 9 µ | 12 µ | 20 bar | 290 psi | 10 Micron Absolute | Microglass | Filtration | Hydraulic Filter | ParFit | NBR: Nitrile | 1.307 in (33.2 mm) | 1.307 in (33.2 mm) | 9.343 in (237.3 mm) | 9 µ | 12 µ | 20 bar | 290 psi | Multilayer fiberglass with epoxy coated mesh on both sides | Steel zinc plated | Steel zinc plated | Steel nickel plated | Epoxy | Epoxy | 10 Micron Absolute | Microglass | FBO | 2.902 in (73.7 mm) | ||
| 370-Z-121A | Backordered | Backordered | $201.80/each | EA | EA | 1 | NBR: Nitrile | 5 µ | 7 µ | 20 bar | 290 psi | 5 Micron Absolute | Microglass | Filtration | Hydraulic Filter | ParFit | NBR: Nitrile | 1.902 in (48.3 mm) | 1.307 in (33.2 mm) | 0.055 in (1.4 mm) | 5 µ | 7 µ | 20 bar | 290 psi | Multilayer fiberglass with epoxy coated mesh on both sides | Steel zinc plated | Steel zinc plated | Steel nickel plated | Epoxy | Epoxy | 5 Micron Absolute | Microglass | FBO | 3.701 in (94 mm) | ||
| 370-Z-220A | Backordered | 6 in stock | $355.38/each | EA | EA | 1 | NBR: Nitrile | 4 µ | 5 µ | 20 bar | 290 psi | 2 Micron Absolute | Microglass | Filtration | Hydraulic Filter | ParFit | NBR: Nitrile | 1.902 in (48.3 mm) | 1.307 in (33.2 mm) | 0.094 in (2.4 mm) | 4 µ | 5 µ | 20 bar | 290 psi | Multilayer fiberglass with epoxy coated mesh on both sides | Steel zinc plated | Steel zinc plated | Steel nickel plated | Epoxy | Epoxy | 2 Micron Absolute | Microglass | AIRFIL | 3.701 in (94 mm) | ||
| 370-Z-221A | Backordered | Backordered | POR | EA | EA | 1 | NBR: Nitrile | 5 µ | 7 µ | 20 bar | 290 psi | 5 Micron Nominal | Microglass | Filtration | Hydraulic Filter | ParFit | NBR: Nitrile | 1.902 in (48.3 mm) | 1.307 in (33.2 mm) | 0.094 in (2.4 mm) | 5 µ | 7 µ | 20 bar | 290 psi | Multilayer fiberglass with epoxy coated mesh on both sides | Steel zinc plated | Steel zinc plated | Steel nickel plated | Epoxy | Epoxy | 5 Micron Nominal | Microglass | FBO | 3.701 in (94 mm) | ||
| 370-Z-222A | Backordered | Backordered | $193.00/each | EA | EA | 1 | NBR: Nitrile | 9 µ | 12 µ | 20 bar | 290 psi | 10 Micron Absolute | Microglass | Filtration | Hydraulic Filter | ParFit | NBR: Nitrile | 1.902 in (48.3 mm) | 1.307 in (33.2 mm) | 0.094 in (2.4 mm) | 9 µ | 12 µ | 20 bar | 290 psi | Multilayer fiberglass with epoxy coated mesh on both sides | Steel zinc plated | Steel zinc plated | Steel nickel plated | Epoxy | Epoxy | 10 Micron Absolute | Microglass | FBO | 3.701 in (94 mm) | ||
| 370-Z-223A | Backordered | 33 in stock | $241.18/each | EA | EA | 1 | NBR: Nitrile | 16 µ | 20 µ | 20 bar | 290 psi | 20 Micron Absolute | Microglass | Filtration | Hydraulic Filter | ParFit | NBR: Nitrile | 1.902 in (48.3 mm) | 1.307 in (33.2 mm) | 0.094 in (2.4 mm) | 16 µ | 20 µ | 20 bar | 290 psi | Multilayer fiberglass with epoxy coated mesh on both sides | Steel zinc plated | Steel zinc plated | Steel nickel plated | Epoxy | Epoxy | 20 Micron Absolute | Microglass | FBO | 3.701 in (94 mm) | ||
| 370-Z-323A | Backordered | 2 Limited Stock | $250.31/each | EA | EA | 1 | NBR: Nitrile | 16 µ | 20 µ | 20 bar | 290 psi | 20 Micron Absolute | Microglass | Filtration | Hydraulic Filter | ParFit | NBR: Nitrile | 1.902 in (48.3 mm) | 1.307 in (33.2 mm) | 12.654 in (321.4 mm) | 16 µ | 20 µ | 20 bar | 290 psi | Multilayer fiberglass with epoxy coated mesh on both sides | Steel zinc plated | Steel zinc plated | Steel nickel plated | Epoxy | Epoxy | 20 Micron Absolute | Microglass | FBO | 3.701 in (94 mm) | ||
| 402525 | Backordered | Backordered | $222.72/each | EA | EA | 1 | NBR: Nitrile | 4 µ | 5 µ | 7 bar | 100 psi | Microglass | Filtration | Hydraulic Filter | ParFit | NBR: Nitrile | 3.201 in (81.3 mm) | 6.13 in (155.7 mm) | 71.949 in (1827.5 mm) | 4 µ | 5 µ | 7 bar | 100 psi | Multilayer fiberglass with epoxy coated mesh on both sides | Mild steel | Mild steel | Epoxy | Epoxy | 2 Micron Absolute | Microglass | 6.13 in (155.7 mm) | 3.201 in (81.3 mm) | ||||
| 901274 | Backordered | Backordered | $334.87/each | EA | EA | 1 | Other | 10 (nominal) µ | Cellulose (Paper) | Filtration | Hydraulic Filter | ParFit | Other | 1.63 in (41.4 mm) | 3.28 in (83.3 mm) | 0.768 in (19.5 mm) | 10 (nominal) µ | Single layer cellulose (paper) | Steel | Steel | Steel | Epoxy | Epoxy | 10 Micron Nominal | Cellulose (Paper) | |||||||||||
| 901325 | Backordered | Backordered | $353.16/each | EA | EA | 1 | Piston Ring and Gaskets | 10 (nominal) µ | Cellulose (Paper) | Filtration | Hydraulic Filter | ParFit | Piston Ring and Gaskets | 1.63 in (41.4 mm) | 3.28 in (83.3 mm) | 9.831 in (249.7 mm) | 10 (nominal) µ | Single layer cellulose (paper) | Steel | Steel | Steel | Epoxy | Epoxy | 10 Micron Nominal | Cellulose (Paper) | |||||||||||
| 901494 | Backordered | Backordered | POR | EA | EA | 1 | Paper | 10 (nominal) µ | Cellulose (Paper) | Filtration | Hydraulic Filter | ParFit | Paper | 1.669 in (42.4 mm) | 2.752 in (69.9 mm) | 2.252 in (57.2 mm) | 10 (nominal) µ | Single layer cellulose (paper) | Steel | Steel | Steel | Epoxy | Epoxy | 10 Micron Nominal | Cellulose (Paper) | 2.752 in (69.9 mm) | 1.669 in (42.4 mm) | |||||||||
| 901536 | Backordered | Backordered | $114.42/each | EA | EA | 1 | Paper | 10 (nominal) µ | Cellulose (Paper) | Filtration | Hydraulic Filter | ParFit | Paper | 1.701 in (43.2 mm) | 2.701 in (68.6 mm) | 6.402 in (162.6 mm) | 10 (nominal) µ | Single layer cellulose (paper) | Steel | Steel | Steel | Epoxy | Epoxy | 10 Micron Nominal | Cellulose (Paper) | 2.701 in (68.6 mm) | 1.701 in (43.2 mm) | |||||||||
| 901774 | Backordered | Backordered | POR | EA | EA | 1 | Paper | Stainless steel mesh | Filtration | Hydraulic Filter | ParFit | Paper | 7.209 in (183.1 mm) | 12.752 in (323.9 mm) | Single layer stainless steel mesh | Weld | 74 Micron Nominal | Stainless steel mesh | 0.862 in (21.9 mm) |
