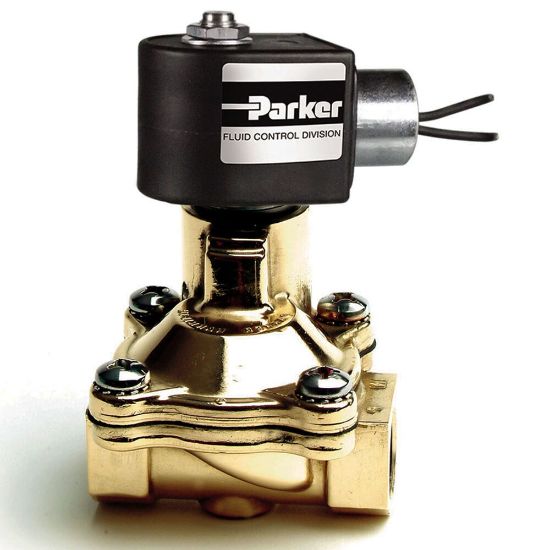

Picture of Parker 2-Way Normally Closed, 1" NPT General Purpose Solenoid Valves - 7321GBN64N00N0C111C2

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2-Way Normally Closed, 1" NPT General Purpose Solenoid Valves - 7321GBN64N00N0C111C2

Parker 2-Way Normally Closed, 1" NPT Solenoid Valves provide operating pressures up to 300 PSI and flow factors up to 13.5 CV's. They offer brass bodies, multiple mounting positions and coil options for all general purpose flow control applications.
Availability:
Backordered
SKU 7321GBN64N00N0C111C2
$432.33
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAVoltage (V)24 VDC
Seal MaterialNBRPower (Watts)10 Watt (DC)
Coil Type1/2" NPT Conduit, 18" LeadsFlow Factor 1 (Cv)11.7
Port TypeNPTBody MaterialBrass
Port Size1 inchDivisionFluid Control Division
MediaLiquids and GasesFunctionNormally Closed (NC)
Valve Type2-WayInput Voltage24.0 VDC
Seal MaterialNBROrifice 2 Sizen/a
Number of Ports2Flow Coefficient 2n/a
Coil Specifications MetNEMA 4XMinimum Fluid Temperature0 °F
Minimum Pressure Differential5 psiMaximum Fluid Temperature185 °F
Product Series7000 SeriesPower Consumption10 W (DC)
Coil Type1/2" NPT Conduit, 18" LeadsOrifice 1 Size1 inch
Flow Coefficient 111.7 CvActuation TypePilot
Maximum Pressure Differential230 psi (DC)
Product resources

Literature and Reference Materials
