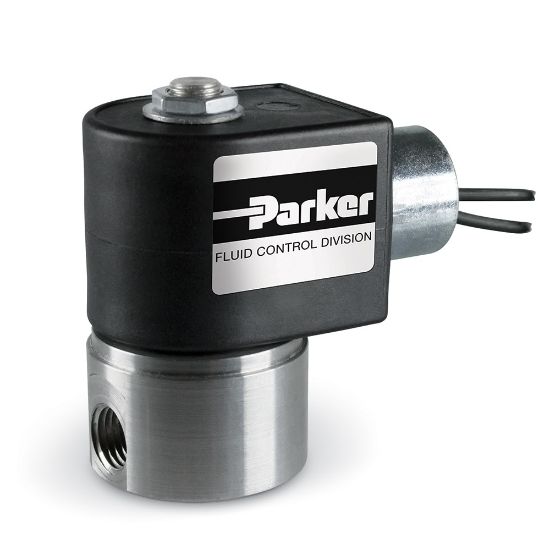

Picture of Parker 2-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves - 71215SN2GN00N0C111P3

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves - 71215SN2GN00N0C111P3

Parker 2-Way Normally Closed, 1/4" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 2.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.
Availability:
Backordered
SKU 71215SN2GN00N0C111P3
$148.71
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEACoil Type1/2" Conduit, 18" Leads
Voltage (V)110/50-120/60Seal MaterialNBR
Power (Watts)10 Watts (AC)Body MaterialStainless
Flow Factor 1 (Cv)0.1Orifice 1 Size (inch)1/16
Port TypeNPTBody MaterialStainless Steel
Port Size1/4 inchDivisionFluid Control Division
MediaLiquids and GasesFunctionNormally Closed (NC)
Coil Type1/2" Conduit, 18" LeadsValve Type2-Way
Input Voltage110/50-120/60Seal MaterialNBR
Actuation TypeDirect ActingOrifice 2 Sizen/a
Number of Ports2Flow Coefficient 2n/a
Coil Specifications MetNEMA 4XMinimum Fluid Temperature0 °F
Minimum Pressure Differential0 psiMaximum Fluid Temperature185 °F
Power Consumption10 W (AC)Product Series7000 Series
Orifice 1 Size1/16 inchFlow Coefficient 10.1 Cv
Maximum Pressure Differential350 psi (AC)
