Parker 2-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves - 73212BN2MN00N0C111C1

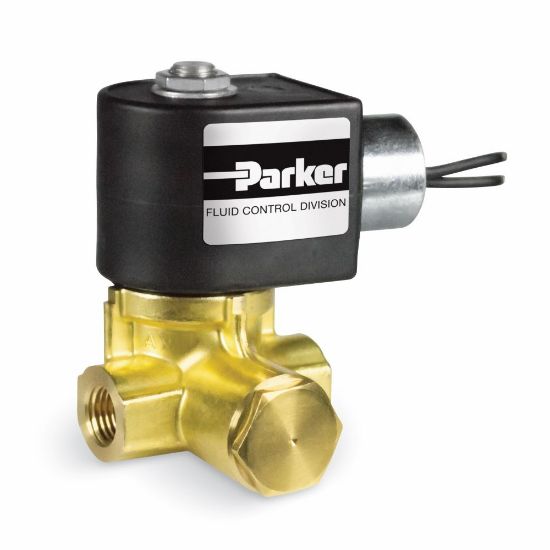

Name: Parker 2-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves - 73212BN2MN00N0C111C1
SKU: 73212BN2MN00N0C111C1

Parker 2-Way Normally Closed, 1/4" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 2.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.

Availability:

Backordered

SKU 73212BN2MN00N0C111C1

$183.12

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Coil Type	1/2" Conduit, 18" Leads	Voltage (V)	12 VDC
Seal Material	NBR	Orifice 1 Size (inch)	1/8
Power (Watts)	10 Watts (DC)	Flow Factor 1 (Cv)	0.76
Port Type	NPT	Body Material	Brass
Port Size	1/4 inch	Division	Fluid Control Division
Media	Liquids and Gases	Function	Normally Closed (NC)
Coil Type	1/2" Conduit, 18" Leads	Valve Type	2-Way
Input Voltage	12.0 VDC	Seal Material	NBR
Orifice 1 Size	1/8 inch	Orifice 2 Size	n/a
Number of Ports	2	Flow Coefficient 2	n/a
Coil Specifications Met	NEMA 4X	Minimum Fluid Temperature	0 °F
Maximum Pressure Differential	300 psi (DC)	Minimum Pressure Differential	5 psi
Maximum Fluid Temperature	185 °F	Product Series	7000 Series
Power Consumption	10 W (DC)	Flow Coefficient 1	0.76 Cv
Actuation Type	Pilot
