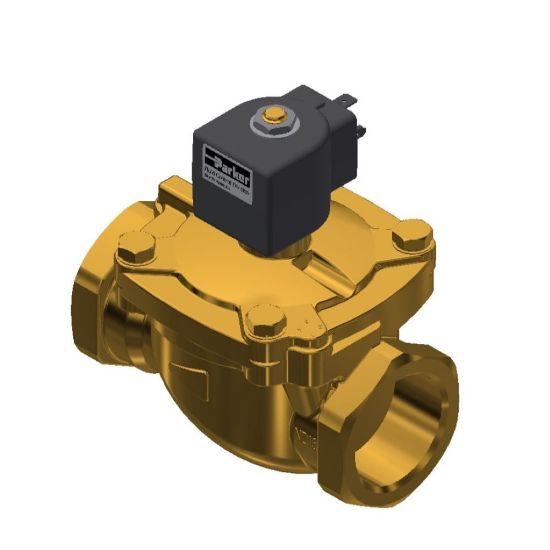

Picture of Parker 2-Way Normally Closed, 2" NPT General Purpose Solenoid Valves - 7321GBN99N00N0D100C2

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2-Way Normally Closed, 2" NPT General Purpose Solenoid Valves - 7321GBN99N00N0D100C2

Parker 2-Way Normally Closed, 2" NPT Solenoid Valves provide pressures up to 230 PSI and flow factors of 38.6 CV's. They have brass bodies, multiple mounting positions and Class F or H and NEMA 4X, 7 or 9 coils for general purpose flow applications.
Availability:
Backordered
SKU 7321GBN99N00N0D100C2
$1,029.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEACoil TypeDIN Form A, Class F
Voltage (V)24 VDCMaximum Pressure Differential (psi)200 psi (DC)
Power (Watts)10 Watt (DC)Port TypeNPT
Body MaterialBrassPort Size2 inch
DivisionFluid Control DivisionMediaLiquids and Gases
FunctionNormally Closed (NC)Coil TypeDIN Form A, Class F
Valve Type2-WayInput Voltage24.0 VDC
Seal MaterialNBROrifice 2 Sizen/a
Number of Ports2Flow Coefficient 2n/a
Coil Specifications MetNEMA 4XMinimum Fluid Temperature0 °F
Minimum Pressure Differential5 psiMaximum Fluid Temperature185 °F
Maximum Pressure Differential200 psi (DC)Product Series7000 Series
Power Consumption10 W (DC)Actuation TypePilot
Orifice 1 Size1-9/16 inchFlow Coefficient 138.6 Cv
