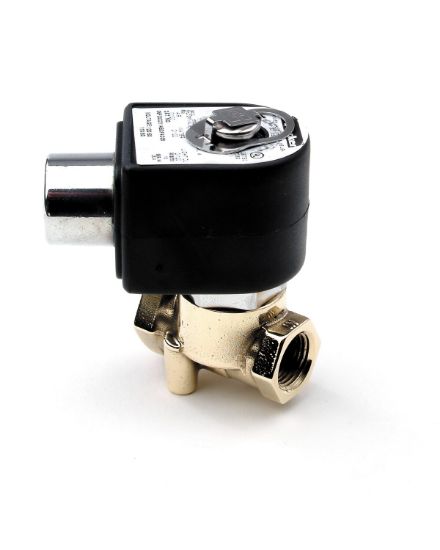

Parker 2-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves - 06F20C2118BDF4C01

Name: Parker 2-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves - 06F20C2118BDF4C01
SKU: 06F20C2118BDF4C01

Parker 2-Way Normally Closed, 3/8" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 5.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.

Availability:

Backordered

SKU 06F20C2118BDF4C01

$206.96

Products specifications

Attribute name	Attribute value
UOM	EA	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)	24/60	Power (Watts)	16 Watt (AC)
Body Material	BRASS	Seal Material	NBR
Flow Factor 1 (Cv)	0.85	Orifice 1 Size (inch)	9/32
Maximum Pressure Differential (psi)	100 psi (AC)	Port Size	3/8 inch
Division	Fluid Control Division	Media	General Purpose for Air
Function	Normally Closed (NC)	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Port Type	NPT	Valve Type	2-Way
Body Material	Brass	Input Voltage	24/60
Seal Material	NBR	Actuation Type	Direct Acting
Orifice 1 Size	9/32 inch	Orifice 2 Size	n/a
Product Series	Gold Ring Series	Number of Ports	2
Power Consumption	16 W (AC)	Flow Coefficient 1	0.85 Cv
Flow Coefficient 2	n/a	Coil Specifications Met	Class F
Maximum Fluid Temperature	200 °F	Minimum Fluid Temperature	0 °F
Maximum Pressure Differential	100 psi (AC)	Minimum Pressure Differential	0 psi

Product resources

Literature and Reference Materials

Tube Seal (PDF)
