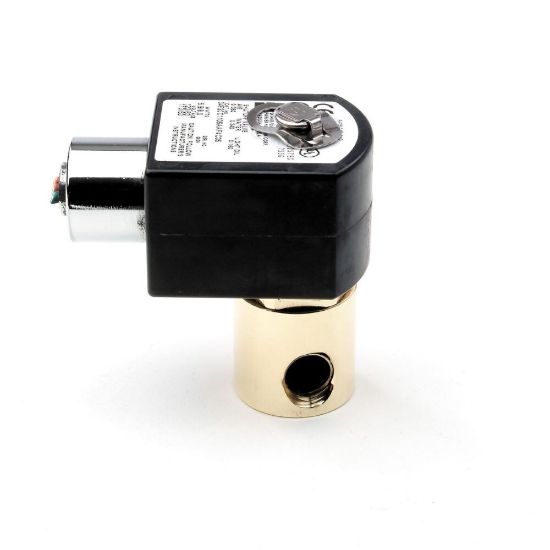

Picture of Parker 2-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves - 04F20O1106ACF4C05

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves - 04F20O1106ACF4C05

Parker 2-Way Normally Open, 1/4" NPT Solenoid Valves provide operating pressures up to 300 PSI and flow factors up to .96 CV's. They have brass bodies, multiple mounting positions and coil options for all general purpose flow control applications.
Availability:
Backordered
SKU 04F20O1106ACF4C05
$231.35
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEACoil Type1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)110/50-120/60Power (Watts)11 Watt (AC)
Seal MaterialNBRFlow Factor 1 (Cv)0.17
Orifice 1 Size (inch)3/32Maximum Pressure Differential (psi)300 psi (AC)
Port Size1/4 inchPort TypeNPT
DivisionFluid Control DivisionMediaGeneral Purpose for Air
FunctionNormally Open (NO)Coil Type1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Valve Type2-WayBody MaterialBrass
Input Voltage110/50-120/60Seal MaterialNBR
Actuation TypeDirect ActingOrifice 1 Size3/32 inch
Orifice 2 Sizen/aProduct SeriesGold Ring Series
Number of Ports2Power Consumption11 W (AC)
Flow Coefficient 10.17 CvFlow Coefficient 2n/a
Coil Specifications MetClass FMaximum Fluid Temperature180 °F
Minimum Fluid Temperature0 °FMaximum Pressure Differential300 psi (AC)
Minimum Pressure Differential0 psi
