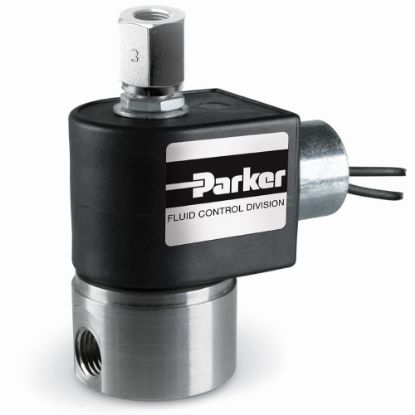

Parker 3-Way Multi-Purpose, 1/4" NPT General Purpose Solenoid Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's 3-Way Multipurpose, Direct Acting 1/4" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential. Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.

Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation

Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff

Applications:
• Single acting spring return cylinder control
• Selection or diversion of process media
• HVAC damper control
• Instrumentation Equipment
• Pneumatic positioning
• Automatic dispensing equipment
• Gas sampling
• Small compressors
• Water treatment
• Air dryers
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Textile and Dry Cleaning Equipment
• Irrigation Equipment

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Coil Type	Voltage (V)	Seal Material	Power (Watts)	Orifice Main (inch)	Mechanical Option	Flow Factor Main (Cv)	Body Material	Maximum Pressure Differential (psi)	Port Type	Port Size	Media	Coil Type	Valve Type	Input Voltage	Seal Material	Actuation Type	Orifice 2 Size	Number of Ports	Flow Coefficient 2	Coil Specifications Met	Maximum Fluid Temperature	Power Consumption	Exhaust Orifice Size	Main Orifice Size	Additional Options	Function	Body Material	Main Flow Coefficient	Exhaust Flow Coefficient	Maximum Pressure Differential
71335SN2ANJ1N0C111P3	Backordered	Backordered	$253.66/each	EA	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	110/50-120/60	NBR	10 Watt (AC)	1/32	Exhaust Adapter Nut	0.024	430F Stainless	400 psi (AC)	NPT	1/4 inch	General Purpose for Air	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	3-Way	110/50-120/60	NBR	Direct Acting	n/a	3	n/a	NEMA 4X	185 °F	10 W (AC)	1/32 inch	1/32 inch	Exhaust Adapter Nut	Multipurpose	Stainless Steel 430 F	0.024 Cv	0.024 Cv	400 psi (AC)
71335SN2ENJ1N0C111C2	Backordered	Backordered	$209.49/each	EA	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	24 VDC	NBR	10 Watt (DC)	3/64	Exhaust Adapter Nut	0.052	430F Stainless	180 psi (DC)	NPT	1/4 inch	General Purpose for Air	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	3-Way	24.0 VDC	NBR	Direct Acting	n/a	3	n/a	NEMA 4X	185 °F	10 W (DC)	1/16 inch	3/64 inch	Exhaust Adapter Nut	Multipurpose	Stainless Steel 430 F	0.052 Cv	0.052 Cv	180 psi (DC)
71335SN2ENJ1N0C111P3	Backordered	Backordered	$210.02/each	EA	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	110/50-120/60	NBR	10 Watt (AC)	3/64	Exhaust Adapter Nut	0.052	430F Stainless	180 psi (AC)	NPT	1/4 inch	General Purpose for Air	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	3-Way	110/50-120/60	NBR	Direct Acting	n/a	3	n/a	NEMA 4X	185 °F	10 W (AC)	1/16 inch	3/64 inch	Exhaust Adapter Nut	Multipurpose	Stainless Steel 430 F	0.052 Cv	0.052 Cv	180 psi (AC)
71335SN2ENJ1N0H111C2	Backordered	35 in stock	$290.27/each	EA	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9	24 VDC	NBR	10 Watt (DC)	3/64	Exhaust Adapter Nut	0.052	430F Stainless	180 psi (DC)	NPT	1/4 inch	Liquids and Gases	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9	3-Way	24.0 VDC	NBR	Direct Acting	n/a	3	n/a	NEMA 7	185 °F	10 W (DC)	1/16 inch	3/64 inch	Exhaust Adapter Nut	Multipurpose	Stainless Steel 430 F	0.052 Cv	0.052 Cv	180 psi (DC)
71335SN2GNJ1N0C111C2	Backordered	Backordered	$209.27/each	EA	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	24 VDC	NBR	10 Watt (DC)	1/16	Exhaust Adapter Nut	0.095	430F Stainless	115 psi (DC)	NPT	1/4 inch	General Purpose for Air	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	3-Way	24.0 VDC	NBR	Direct Acting	n/a	3	n/a	NEMA 4X	185 °F	10 W (DC)	1/16 inch	1/16 inch	Exhaust Adapter Nut	Multipurpose	Stainless Steel 430 F	0.095 Cv	0.095 Cv	115 psi (DC)
71335SN2GNJ1N0H111C1	Backordered	Backordered	$290.11/each	EA	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9	12 VDC	NBR	10 Watt (DC)	1/16	Exhaust Adapter Nut	0.095	430F Stainless	115 psi (DC)	NPT	1/4 inch	Liquids and Gases	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9	3-Way	12.0 VDC	NBR	Direct Acting	n/a	3	n/a	NEMA 7	185 °F	10 W (DC)	1/16 inch	1/16 inch	Exhaust Adapter Nut	Multipurpose	Stainless Steel 430 F	0.095 Cv	0.095 Cv	115 psi (DC)
71335SN2KNJ1N0C111P3	Backordered	1 Limited Stock	$209.77/each	EA	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	110/50-120/60	NBR	10 Watt (AC)	3/32	Exhaust Adapter Nut	0.17	430F Stainless	80 psi (AC)	NPT	1/4 inch	General Purpose for Air	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	3-Way	110/50-120/60	NBR	Direct Acting	n/a	3	n/a	NEMA 4X	185 °F	10 W (AC)	3/32 inch	3/32 inch	Exhaust Adapter Nut	Multipurpose	Stainless Steel 430 F	0.17 Cv	0.17 Cv	80 psi (AC)
