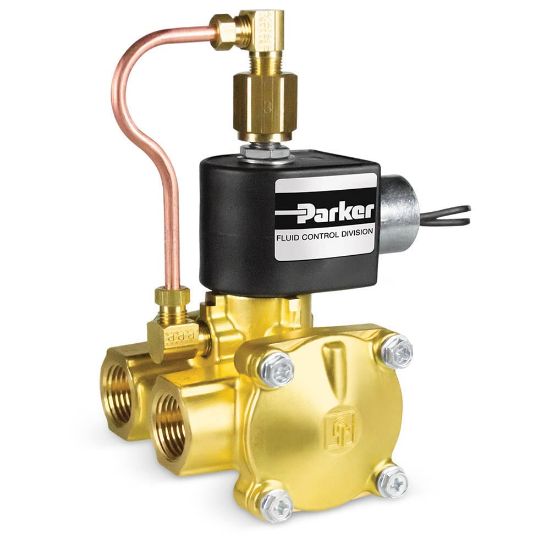

Picture of Parker 3-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves - 73312BN3RNJ1N0C111P3

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 3-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves - 73312BN3RNJ1N0C111P3

Parker 3-Way Normally Closed, 3/8" NPT Solenoid Valves provide operating pressures of 180 psi and flow factors of 2.1 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.
Availability:
Backordered
SKU 73312BN3RNJ1N0C111P3
$669.84
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEACoil Type1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)110/50-120/60Power (Watts)10 Watt (AC)
Mechanical OptionExhaust Adapter NutMaximum Pressure Differential (psi)180 psi (AC)
Port TypeNPTBody MaterialBrass
DivisionFluid Control DivisionMediaLiquids and Gases
FunctionNormally Closed (NC)Coil Type1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Valve Type3-WayInput Voltage110/50-120/60
Seal MaterialNBROrifice 2 Sizen/a
Number of Ports3Flow Coefficient 2n/a
Coil Specifications MetNEMA 4XMinimum Fluid Temperature0 °F
Port Size3/8 inchMaximum Fluid Temperature185 °F
Exhaust Flow Coefficientn/aPower Consumption10 W (AC)
Actuation TypeMechanicalExhaust Orifice Sizen/a
Product Series7000 SeriesAdditional OptionsExhaust Adapter Nut
Maximum Pressure Differential180 psi (AC)Main Orifice Size3/8 inch
Main Flow Coefficient2.1 CvMinimum Pressure Differential10 psi
Product resources

Literature and Reference Materials
