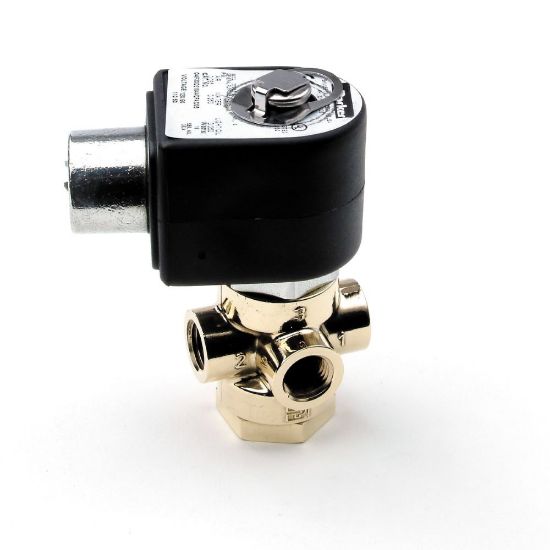

04F30O2104ADF4C05 - Parker 3-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves

Parker 3-Way Normally Open, 1/4" NPT Solenoid Valves provide operating pressures up to 235 psi (AC) and flow factors up to 0.25 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU 04F30O2104ADF4C05

$194.09/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)	110/50-120/60	Power (Watts)	16 Watt (AC)
Maximum Pressure Differential (psi)	235 psi (AC)	Orifice Main (inch)	1/16
Flow Factor Main (Cv)	0.09	Port Size	1/4 inch
Port Type	NPT	Media	General Purpose for Air
Function	Normally Open (NO)	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Valve Type	3-Way	Body Material	Brass
Input Voltage	110/50-120/60	Seal Material	NBR
Actuation Type	Direct Acting	Orifice 2 Size	n/a
Number of Ports	3	Power Consumption	16 W (AC)
Flow Coefficient 2	n/a	Coil Specifications Met	Class F
Maximum Fluid Temperature	200 °F	Minimum Fluid Temperature	0 °F
Maximum Pressure Differential	235 psi (AC)	Minimum Pressure Differential	0 psi
Main Orifice Size	1/16 inch	Additional Options	n/a
Exhaust Orifice Size	1/16 inch	Main Flow Coefficient	0.09 Cv
Exhaust Flow Coefficient	0.09 Cv
