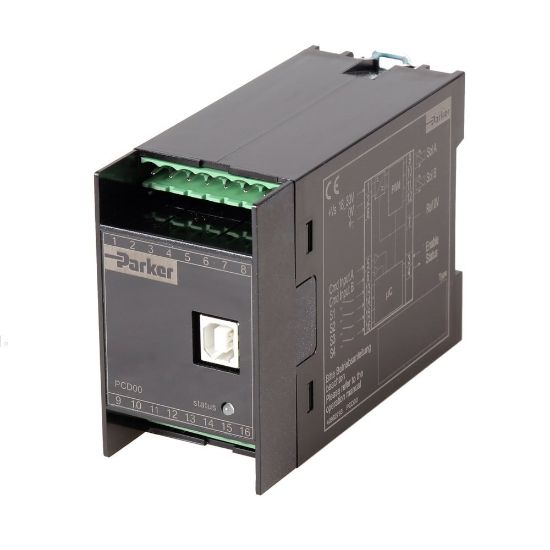

PCD00A-400

Parker electronic modules series PCD00A-400 (for rail mounting) are compact, easy to install and provide time-saving wiring by disconnectable terminals. The digital design of the circuit results in good accuracy and optimal adaption for proportional pressure/flow control valves by a comfortable interface program.

Series PCD00A-400 combines all necessary functions for the optimal operation of two proportional pressure/flow control valves (series R*V, RE*E*W, RE06M*W, DUR, PRPM, VBY, VMY, TDA, TEA).

Features:

• Proven design - ensures reliable operation
• Digital circuit design - enables optimum valve performance
• Free PC user software (www.parker.com/propxd) - for comfortable adaption
• Short delivery time - no warehousing necessary
• Two independent operable amplifiers
• Four parameterizable command channels
• Constant current control
• Two input stages 0...10 V
• Status output
• Two up/down ramp functions
• Enable input for solenoid driver
• Status indicator
• Parametering via serial interface RS232C
• Connection by disconnectable terminals
• Compatible to the relevant European EMC standards

Applications:

• Machine tools
• General presses
• Tire presses
• Die cast
• Injection molding
