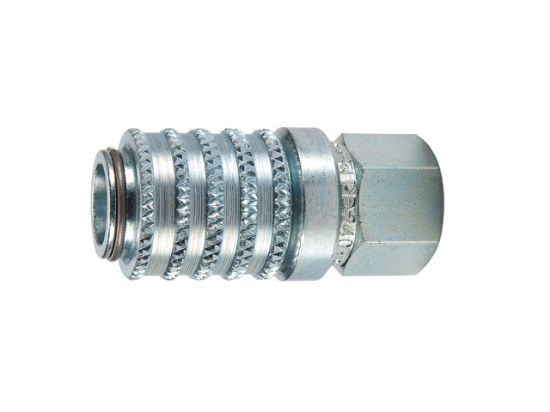

PD288 - PD Series Coupler - Transducer Adapter

Diagnostic Test Port

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	10 in stock

SKU PD288

$170.79/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Pkg Qty/UOM	5 EA
Material	Steel	UOM	EA
Pkg Qty	5	Body Size	1/8 Inch
Thread 1	1/2 Inch	Max Pressure	6000 PSI (410 bar)
Parker Group	Fluid Connector	Parker Division	Quick Coupling
Quick Coupler Type	Diagnostic Test Port	Configuration Type	Female BSPP
Inch/Metric	Metric	Material	Steel
Thread 1	1/2 Inch	Max Pressure Range	> 5000 PSI (345 bar)
Coupler/Nipple/Shell	Coupler	Thread 1 Type	Inch
Series	PD	Body Size	1/8 Inch

Product resources

Appendices (PDF)
PD Series (PDF)
