PDSMP50-6-06-40

The SensoControl Parker Service Master Plus is a premium multi-functional diagnostic instrument that combines data measurement, display, and on-screen analysis. With both CAN bus sensor communication and traditional analog inputs, the Parker Service Master Plus has 24 channels for a variety of inputs and outputs. This powerful test instrument will store up to one billion measured values. A variety of test kits are available.Pressure Test kits include:

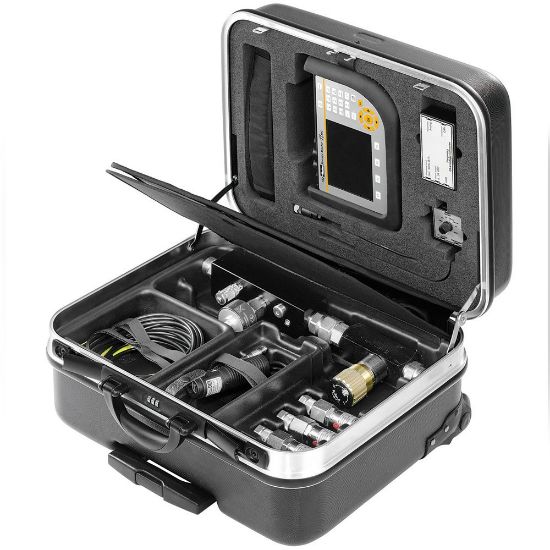

The Parker Service Master Plus

Storage case

2 Transducers (choice of measuring ranges, PD or EMA connection style, analog or CAN technology)

2 Transducer cables

Power supply

SensoWin software and documentation

USB connection cable

Quick start manualOptional kit expansion items include: other SensoControl transducers, flow sensors, temperature sensor, tachometer, voltage adapter, cables (order separately).The Parker SensoControl Service Master Plus is the premier tool to measure, record, and analyze many system parameters beyond pressure. A variety of accessories are available for measuring flow, fluid temperature, current, voltage, and rotational speed. To expand the functionality of the basic pressure test kit, purchase these additional SensoControl accessories: transducers, flow sensors, temperature sensor, tachometer, voltage adapter, cables (ordered separately).

Features:

Pressure kits are easily expanded with SensoControl accessories to fully utilize the diagnostic capabilities of Parker's Service Master Plus meter

On-board analysis functions for in-hand system diagnosis without needing to download data to a PC or laptop

Full color data display with graphic viewing options

1 ms scan rate

Up to 1 billion data points total storage

Multiple CANbus and analog inputs

24 channels for a variety of inputs and outputs

Powerful multi-function diagnostic instrument with IP64 protection

Transducers are color coded to correspond with pressure ranges for easy visual identification

Suitable for use with hydraulic and pneumatic systems

Applications:

Mobile equipment

Cooling systems

Industrial hydraulic systems

Fluid or air system maintenance and troubleshooting

System performance optimization

System validation

Markets:

Industrial|Construction|Molding|Testing|Maintenance and Repair, MRO
