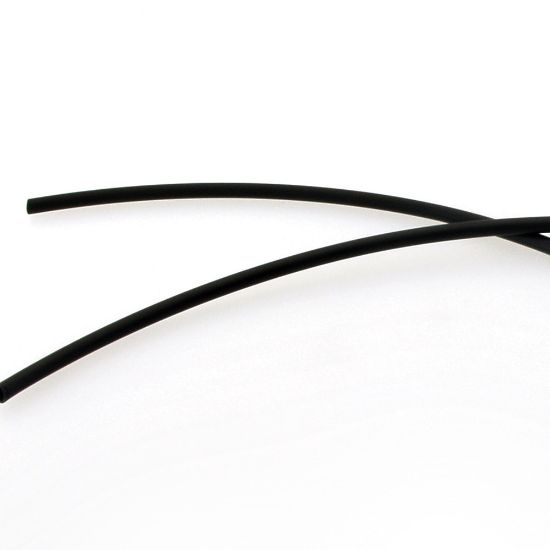

Picture of PEFR-4-1000 - PE Tubing - Flame Resistant
Picture of PEFR-4-1000 - PE Tubing - Flame Resistant
Picture of PEFR-4-1000 - PE Tubing - Flame Resistant

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PEFR-4-1000 - PE Tubing - Flame Resistant

Spark resistant PEFR Series PE Tubing is flame resistant (UL 94 V-2) and excellent for pneumatic controls in HVAC applications. Resistant to stress cracking exceeds that of ordinary polyethylene tubing.
Availability:
Backordered
Estimated Lead Time: 14 days
Partner Available:Backordered
SKU PEFR-4-1000
$0.34/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Parker's PEFR Series Tubing features exceptional flame, spark and stress crack resistance. It is designed for use in industrial pneumatic markets for purposes that involve weld spatter and spark environments and pneumatic controls in HVAC applications. Its resistance to environmental stress cracking exceeds that of ordinary polyethylene tubing, as measured by ASTM D-1693 (10% IGEPAL). Utilizing PEFR Series Tubing for industrial applications in spark and weld-spatter environments will allow for successful and safe system operation without hose damage or stress cracking. For more product information, download the literature listed on the Product Support tab.

Features:

  • Excellent stress crack resistance for high performance in weld spatter and spark environments

    Applications:

  • Pneumatic controls in HVAC applications
  • Weld spatter/spark environments

    Certifications/Compliance:

  • UL 94 V-2
  • ASTM D-1693 (10% IGEPAL) for stress crack resistance

    Technical Specifications:

  • Extruded from flame resistant linear low-density polyethylene (LLDPE)
  • Working and burst pressures rated at 73°F (23°C)
  • The wall thickness is for reference only
  • For tube support use, reference Catalog 4660 Tubing/Fitting Compatibility Chart

    • Markets:

    Industrial Pneumatics | HVAC
    Products specifications
    Attribute nameAttribute value
    UOMFTTube O.D. (inch)1/4
    Standard Pack Qty (ft)1000MediaAir
    Size-4Cover Materialn/a
    Minimum Bend Radius3/4 inchTube Outside Diameter1/4 inch
    ColorBlackCompatible FittingCompress-Align®
    Maximum Operating Temperature66 °CWeight0.012 lb/ft
    Tube Inside Diameter4.3 mmTube MaterialPolyethylene (PE) (Flame Resistant)
    Length per Package304 mSpecifications MetUL 94 V-2
    Minimum Burst Pressure38.6 barMaximum Operating Pressure0.97 MPa
    Minimum Operating Temperature-85 °FMin. Burst Pressure3.86 MPa 560 psi 38.6 Bar
    Max. Operating Pressure0.97 MPa 9.7 Bar 140 psiMin. Bend Radius3/4 Inch 17.4 MM
    MediaAirMin. Operating Temperature-85 °F -65 °C
    Weight0.012 LB/ftMax. Operating Temperature150 °F 66 °C
    Length304 M 1000 ftWall Thickness0.040 Inch 1 MM
    Inside Diameter0.170 Inch 4.3 MMOutside Diameter1/4 Inch 6.4 MM
    Parker GroupFluid ConnectorColorBlack
    Parker DivisionTubing
