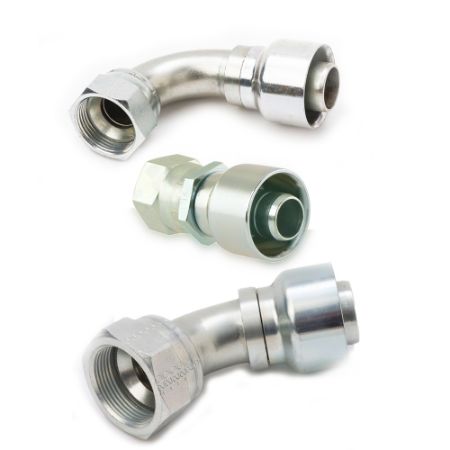

Permanent Fittings for 939/939B PTFE Hose – 93N Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 93N Series fittings are used with convoluted, medium pressure PTFE hoses from the Parflex division. Our wide selection of crimp fittings for PTFE hoses include, but are not limited to, NPT, JIC and Seal-Lok™ designs with many fittings available in Stainless Steel for corrosive applications. The fittings have a lead-in feature at the base to simplify proper hose insertion and can be crimped with any of the Parkrimp machines. The dies for these crimpers include Parker's exclusive Parkalign® system, featuring a positive-stop design that positions the fitting in the die for a perfect crimp every time.
Markets:
• Industrial
• Air & Gas compressors
• Packaging machinery
• Printing and marking equipment
Features/Benefits:
• Lead-in design
• Parkalign® dies
Applications:
• Chemical transfer lines
• General hydraulics
• Hose applications requiring tight routings
Read More...Markets:
• Industrial
• Air & Gas compressors
• Packaging machinery
• Printing and marking equipment
Features/Benefits:
• Lead-in design
• Parkalign® dies
Applications:
• Chemical transfer lines
• General hydraulics
• Hose applications requiring tight routings
| Action | SKU | Availability | Partner Available | Price | UOM | Product Style | Hose I.D. (inch) | Connection 2 Size | Length (inch) | Body Material | Shape | Specifications Met | Coating | Hex Size 1 | Configuration | Connection 1 Size | Connection 1 Type | Hex Size | Connection 2 Size | Connection 2 Type | Industry | Fitting Length | For Fluid Type | Connection Length | Maximum Operating Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10193N-12-12 | Backordered | 19 in stock | $58.45/each | EA | Male NPTF Pipe - Rigid | 0.75" | 3/4"-14 | 2.7" | Steel | Straight | N/A | Chromium 6 Free-plated | n/a | Hose to Port | -12 (Size) | Hose | 1-1/8 inch (see drawing legend H) | 3/4"-14 inch Thread | NPTF | Chemicals Processing | 2.70 inch (see drawing legend A) | Chemicals | 41 mm | 10.3 MPa | |
| 10193N-12-12C | Backordered | 2 Limited Stock | $187.08/each | EA | Male NPTF Pipe - Rigid | 0.75" | 3/4"-14 | 2.7" | Stainless Steel | Straight | N/A | None | n/a | Hose to Port | 3/4 inch Hose I.D. | Hose | 1-1/8 inch (see drawing legend H) | 3/4"-14 inch Thread | NPTF | Transportation | 68.6 mm | Gases | 41 mm | 1500 psi (Dependent on hose) | |
| 10193N-16-16 | 6 in stock | 49 in stock | $89.22/each | EA | Male NPTF Pipe - Rigid | 1" | 1"-11-1/2 | 3.03" | Steel | Straight | N/A | Chromium 6 Free-plated | n/a | Hose to Port | -16 (Size) | Hose | 1-3/8 inch (see drawing legend H) | 1"-11-1/2 inch Thread | Male | Industrial Processing | 3.03 inch (see drawing legend A) | Steam | 1-13/16 inch Cut-off allowance (see drawing legend B) | 103.0 bar | |
| 10193N-16-16C | Backordered | 15 in stock | $257.81/each | EA | Male NPTF Pipe - Rigid | 1" | 1"-11-1/2 | 3.03" | Stainless Steel | Straight | N/A | None | n/a | Hose to Port | -16 (Size) | Hose | 1-3/8 inch (see drawing legend H) | 1"-11-1/2 inch Thread | Male | Industrial Processing | 3.03 inch (see drawing legend A) | Chemicals | 1-13/16 inch Cut-off allowance (see drawing legend B) | 1500 psi (Dependent on hose) | |
| 10193N-20-20 | 1 Limited Stock | 8 in stock | $155.66/each | EA | Male NPTF Pipe - Rigid | 1.25" | 1-1/4"-11-1/2 | 3.20" | Steel | Straight | N/A | Chromium 6 Free-plated | n/a | Hose to Port | 31.8 mm | Hose | 1-11/16 inch (see drawing legend H) | 1-1/4"-11-1/2 inch Thread | NPTF | Food & Beverage | 3.20 inch (see drawing legend A) | Chemicals | 48 mm | 10.3 MPa | |
| 10193N-20-20C | Backordered | 2 Limited Stock | $420.54/each | EA | Male NPTF Pipe - Rigid | 1.25" | 1-1/4"-11-1/2 | 3.20" | Stainless Steel | Straight | N/A | None | n/a | Hose to Port | 31.8 mm | Hose | 1-11/16 inch (see drawing legend H) | 1-1/4"-11-1/2 inch Thread | NPTF | Food & Beverage | 81.3 mm | Gases | 1-7/8 inch Cut-off allowance (see drawing legend B) | 103.0 bar | |
| 10193N-24-24 | Backordered | Backordered | $176.29/each | EA | Male NPTF Pipe - Rigid | 1.5" | 1-1/2"-11-1/2 | 3.76" | Steel | Straight | N/A | Chromium 6 Free-plated | n/a | Hose to Port | 38 mm | Hose | 2 inch (see drawing legend H) | 1-1/2"-11-1/2 inch Thread | NPTF | Transportation | 95.5 mm | Air (Pneumatic Media) | 2-1/16 inch Cut-off allowance (see drawing legend B) | 10.3 MPa | |
| 10193N-24-24C | Backordered | Backordered | $513.24/each | EA | Male NPTF Pipe - Rigid | 1.5" | 1-1/2"-11-1/2 | 3.76" | Stainless Steel | Straight | N/A | None | n/a | Hose to Port | 3/4 inch Hose I.D. | Hose | 2 inch (see drawing legend H) | 1-1/2"-11-1/2 inch Thread | NPTF | Healthcare & Life Sciences | 95.5 mm | Chemicals | 2-1/16 inch Cut-off allowance (see drawing legend B) | 1500 psi (Dependent on hose) | |
| 10193N-32-32 | 23 in stock | 8 in stock | $312.33/each | EA | Male NPTF Pipe - Rigid | 2" | 2"-11-1/2 | 3.97" | Steel | Straight | N/A | Chromium 6 Free-plated | n/a | Hose to Port | 3/4 inch Hose I.D. | Hose | 2-1/2 inch (see drawing legend H) | 2"-11-1/2 inch Thread | Male | Semiconductor | 100.9 mm | Hydraulic Fluids | 59 mm | 103.0 bar | |
| 10193N-32-32C | Backordered | Backordered | $887.36/each | EA | Male NPTF Pipe - Rigid | 2" | 2"-11-1/2 | 3.97" | Stainless Steel | Straight | N/A | None | n/a | Hose to Port | 3/4 inch Hose I.D. | Hose | 2-1/2 inch (see drawing legend H) | 2"-11-1/2 inch Thread | Male | Food & Beverage | 3.97 inch (see drawing legend A) | Hydraulic Fluids | 2-5/16 inch Cut-off allowance (see drawing legend B) | 103.0 bar | |
| 10193N-8-8 | Backordered | 12 in stock | $61.59/each | EA | Male NPTF Pipe - Rigid | 0.5" | 1/2"-14 | 2.09" | Steel | Straight | N/A | Chromium 6 Free-plated | n/a | Hose to Port | 12.7 mm | Hose | 7/8 inch (see drawing legend H) | 1/2"-14 inch Thread | Male | Industrial Manufacturing Equipment | 2.09 inch (see drawing legend A) | Gases | 1-1/2 inch Cut-off allowance (see drawing legend B) | 10.3 MPa | |
| 10193N-8-8C | Backordered | Backordered | $140.73/each | EA | Male NPTF Pipe - Rigid | 0.5" | 1/2"-14 | 2.09" | Stainless Steel | Straight | N/A | None | n/a | Hose to Port | 3/4 inch Hose I.D. | Hose | 7/8 inch (see drawing legend H) | 1/2"-14 inch Thread | Male | Semiconductor | 2.09 inch (see drawing legend A) | Water | 38 mm | 103.0 bar | |
| 10693N-10-10 | Backordered | 12 in stock | $209.77/each | EA | Female JIC 37° Swivel | 0.625" | 7/8"-14 | 2.51" | Steel | Straight | N/A | Chromium 6 Free-plated | 1 inch (see drawing legend J) | Hose to Port | 3/4 inch Hose I.D. | Hose | 1 inch (see drawing legend H) | 7/8"-14 inch Thread | JIC 37° | Semiconductor | 63.7 mm | Hydraulic Fluids | 1-9/16 inch Cut-off allowance (see drawing legend B) | 1500 psi (Dependent on hose) | |
| 10693N-10-10C | Backordered | Backordered | $624.54/each | EA | Female JIC 37° Swivel | 0.625" | 7/8"-14 | 2.51" | Stainless Steel | Straight | N/A | None | 1 inch (see drawing legend J) | Hose to Port | 15.8 mm | Hose | 1 inch (see drawing legend H) | 7/8"-14 inch Thread | Female | Semiconductor | 63.7 mm | Steam | 40 mm | 103.0 bar | |
| 10693N-12-12 | 12 in stock | 136 in stock | $60.12/each | EA | Female JIC 37° Swivel | 0.75" | 1-1/16"-12 | 2.79" | Steel | Straight | N/A | Chromium 6 Free-plated | 1-1/4 inch (see drawing legend J) | Hose to Port | 19 mm | Hose | 1-1/8 inch (see drawing legend H) | 1-1/16"-12 inch Thread | Female | Industrial Manufacturing Equipment | 2.79 inch (see drawing legend A) | Hydraulic Fluids | 1-11/16 inch Cut-off allowance (see drawing legend B) | 1500 psi (Dependent on hose) | |
| 10693N-12-12C | Backordered | 245 in stock | $235.18/each | EA | Female JIC 37° Swivel | 0.75" | 1-1/16"-12 | 2.86" | Stainless Steel | Straight | N/A | None | 1-1/4 inch (see drawing legend J) | Hose to Port | 3/4 inch Hose I.D. | Hose | 1-1/8 inch (see drawing legend H) | 1-1/16"-12 inch Thread | Swivel | Chemicals Processing | 72.6 mm | Water | 1-11/16 inch Cut-off allowance (see drawing legend B) | 1500 psi (Dependent on hose) | |
| 10693N-16-16 | 27 in stock | 71 in stock | $80.86/each | EA | Female JIC 37° Swivel | 1" | 1-5/16"-12 | 3.11" | Steel | Straight | N/A | Chromium 6 Free-plated | 1-1/2 inch (see drawing legend J) | Hose to Port | 3/4 inch Hose I.D. | Hose | 1-3/8 inch (see drawing legend H) | 1-5/16"-12 inch Thread | Female | Food & Beverage | 78.9 mm | Water | 1-7/8 inch Cut-off allowance (see drawing legend B) | 1500 psi (Dependent on hose) | |
| 10693N-16-16C | 15 in stock | 19 in stock | $272.62/each | EA | Female JIC 37° Swivel | 1" | 1-5/16"-12 | 3.11" | Stainless Steel | Straight | N/A | None | 1-1/2 inch (see drawing legend J) | Hose to Port | -16 (Size) | Hose | 1-3/8 inch (see drawing legend H) | 1-5/16"-12 inch Thread | Female | Semiconductor | 78.9 mm | Steam | 48 mm | 10.3 MPa | |
| 10693N-20-20 | 14 in stock | 22 in stock | $165.26/each | EA | Female JIC 37° Swivel | 1.25" | 1-5/8"-12 | 3.32" | Steel | Straight | N/A | Chromium 6 Free-plated | 2 inch (see drawing legend J) | Hose to Port | -20 (Size) | Hose | 1-3/4 inch (see drawing legend H) | 1-5/8"-12 inch Thread | Swivel | Healthcare & Life Sciences | 84.3 mm | Chemicals | 2 inch Cut-off allowance (see drawing legend B) | 1500 psi (Dependent on hose) | |
| 10693N-20-20C | Backordered | 5 in stock | $560.27/each | EA | Female JIC 37° Swivel | 1.25" | 1-5/8"-12 | 3.28" | Stainless Steel | Straight | N/A | None | 2 inch (see drawing legend J) | Hose to Port | 3/4 inch Hose I.D. | Hose | 1-3/4 inch (see drawing legend H) | 1-5/8"-12 inch Thread | Female | Food & Beverage | 3.28 inch (see drawing legend A) | Hydraulic Fluids | 51 mm | 1500 psi (Dependent on hose) |
