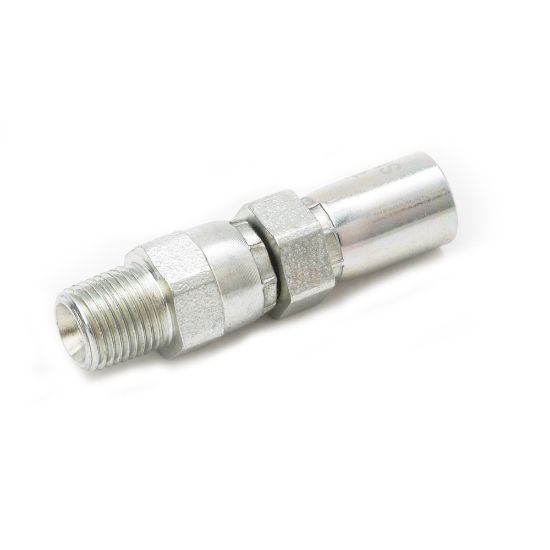

Picture of Permanent Fittings for Parflex Hose – CY Series - 113CY-2-3

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Permanent Fittings for Parflex Hose – CY Series - 113CY-2-3

Parker CY Series Fittings are a durable, steel, crimp style permanent fittings that are suitable for use with the Parflex HLB Lubrication Line Hose and the 56DH/568DH Diagnostic Hose.
Availability:
Backordered
SKU 113CY-2-3
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAShapeStraight
Body MaterialSteelConnection 2 Size1/8"-27
Hose I.D. (inch)0.1875"Product StyleMale NPTF Pipe - Swivel - Straight
Length (inch)2.29"BrandPARKER
DivisionParflex DivisionBody MaterialSteel
ShapeStraightIndustryTransportation
TechnologyFluid & Gas HandlingSpecifications MetN/A
CoatingChromium 6 Free-platedDivisionParflex Division
Product TypeHose FittingsConfigurationHose to Port
For Fluid TypeOilConnection 1 TypeHose
Connection 2 Size1/8"-27 inch ThreadHex Size0.5 inch (see drawing legend H)
ApplicationFluid ControlConnection 1 Size3/16 inch Hose I.D.
Maximum Operating Pressure414 barConnection Length1-7/16 inch Cut-off allowance
Connection 2 TypeNPTF SwivelHex Size 10.5 inch (see drawing legend J)
Fitting Length58.166 mm
