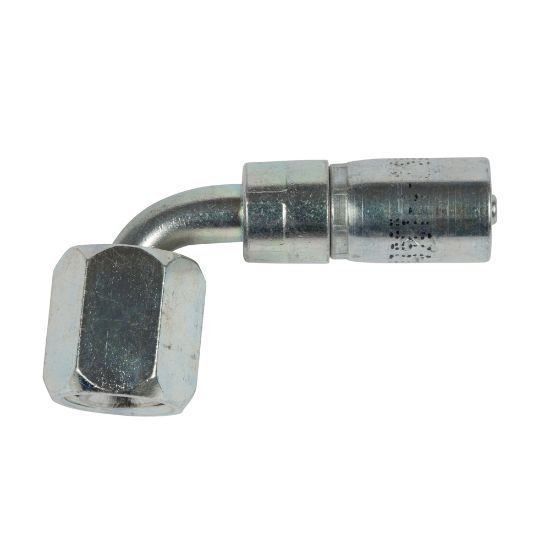

139CY-4-2 - Permanent Fittings for Parflex Hose – CY Series

Name: 139CY-4-2 - Permanent Fittings for Parflex Hose – CY Series
SKU: 139CY-4-2
Price: 41.02 USD
Availability: InStock

Parker CY Series Fittings are a durable, steel, crimp style permanent fittings that are suitable for use with the Parflex HLB Lubrication Line Hose and the 56DH/568DH Diagnostic Hose.

Availability:

170 in stock

COLUMBIA, MO	151
Olivette, MO	10
Wichita, KS	8
Peoria, IL	1

Partner Available:

359 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 139CY-4-2

$41.02/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Hose I.D. (inch)	0.125"	Connection 2 Size	7/16"-20
Length (inch)	1.61"	Shape	Elbow 90° - Short Drop
Product Style	Female JIC 37° - Swivel - 90° Elbow - Short Drop	Body Material	Steel
Specifications Met	N/A	Coating	Chromium 6 Free-plated
Hex Size 1	n/a	Configuration	Hose to Port
For Fluid Type	Hydraulic Fluids	Connection 1 Type	Hose
Industry	Off-road Machinery	Hex Size	0.5625 inch (see drawing legend H)
Connection 1 Size	1/8 inch	Maximum Operating Pressure	414 bar
Connection 2 Type	Female	Connection 2 Size	7/16"-20 inch Thread
Shape	Elbow 90° Short Drop	Fitting Length	1.61 inch
Connection Length	26 mm
