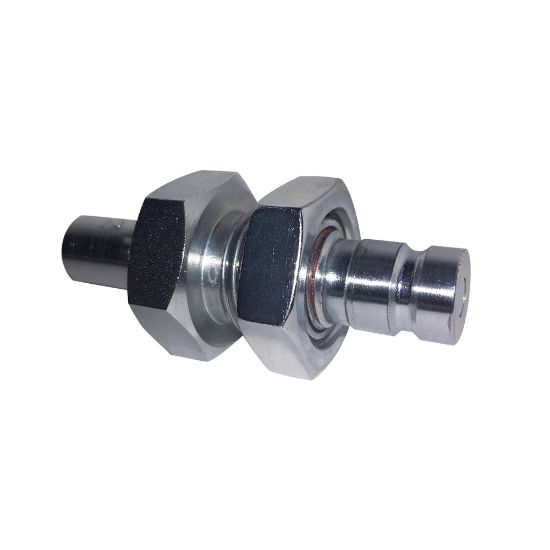

Picture of Permanent Fittings for Parflex Hose – CY Series - 1PDCY-2-2

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Permanent Fittings for Parflex Hose – CY Series - 1PDCY-2-2

Parker CY Series Fittings are a durable, steel, crimp style permanent fittings that are suitable for use with the Parflex HLB Lubrication Line Hose and the 56DH/568DH Diagnostic Hose.
Availability:
Backordered
SKU 1PDCY-2-2
$38.34
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAShapeStraight
Body MaterialSteelHose I.D. (inch)0.125"
Length (inch)2.42"Product StyleBulkhead Diagnostic Nipple
Connection 2 Size3/14"-16 UNFBrandPARKER
DivisionParflex DivisionBody MaterialSteel
ShapeStraightTechnologyFluid & Gas Handling
Specifications MetN/ACoatingChromium 6 Free-plated
DivisionParflex DivisionHex Size 1n/a
Product TypeHose FittingsConfigurationHose to Port
For Fluid TypeHydraulic FluidsConnection 1 TypeHose
IndustryOff-road MachineryApplicationFluid Control
Connection 1 Size1/8 inch Hose I.D.Maximum Operating Pressure414 bar
Connection Length1-7/8 inch Cut-off allowanceConnection 2 TypeUNF Thread
Hex Size1.0 inch (see drawing legend H)Fitting Length61.47 mm
Connection 2 Size3/14"-16 inch
