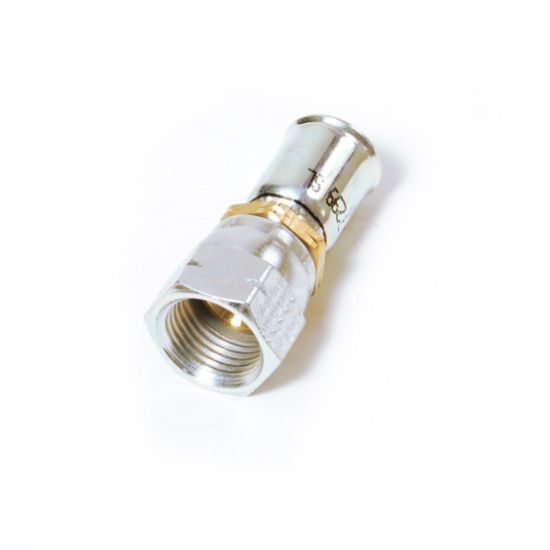

Picture of Permanent Fittings for PTFE Hose - 91/91N - 10891N-6-6

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Permanent Fittings for PTFE Hose - 91/91N - 10891N-6-6

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.
Availability:
31 in stock
Olivette, MO11
Kansas City, KS6
COLUMBIA, MO4
TOPEKA, KS4
Wichita, KS3
Joplin, MO2
Springfield, MO1
SKU 10891N-6-6
$11.04
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAHose I.D. (inch)0.313"
Connection 2 Size5/8"-18Length (inch)1.69"
Product StyleFemale NPSM Pipe - Swivel - Straight (60° Cone)BrandPARKER
DivisionParflex DivisionShapeStraight
IndustryGeneral IndustrialTechnologyFluid & Gas Handling
Specifications MetN/ADivisionParflex Division
Product TypeHose FittingsConfigurationHose to Port
Connection 1 TypeHoseTube Outside Diametern/a
ApplicationMedicalFor Fluid TypeWater
Dimensional Weight0.0235 lbBody MaterialBrass (Nipple)
Product Series91NConnection 1 Size7.9 mm
Connection Length1-1/8 inch Cut-off allowance (see drawing legend B)Maximum Operating Pressure20.7 MPa
Connection 2 TypeFemaleConnection 2 Size5/8"-18 inch Thread
Hex Size5/8 inch (see drawing legend J)CoatingBrass (Nipple)
Hex Size 13/4 inch (see drawing legend H)Fitting Length44 mm
