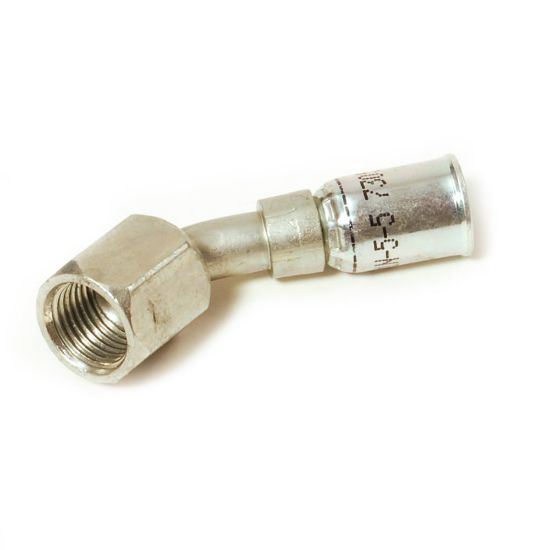

13791N-4-4 - Permanent Fittings for PTFE Hose - 91/91N

Name: 13791N-4-4 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 13791N-4-4
Price: 23.54 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Availability:

37 in stock

Olivette, MO	31
Wichita, KS	2
Springfield, MO	2
Kansas City, KS	1
Decatur, IL	1

Partner Available:

221 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 13791N-4-4

$23.54/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	0.188"
Length (inch)	1.74"	Connection 2 Size	7/16"-20
Product Style	Female JIC 37° - Swivel - 45° Elbow - Short Drop	Body Material	Steel
Industry	General Industrial	Maximum Operating Pressure	207 bar
Specifications Met	N/A	Coating	Chromium 6 Free-plated
Hex Size	n/a	Configuration	Hose to Port
Connection 1 Type	Hose	Tube Outside Diameter	n/a
For Fluid Type	Pharmaceutical Fluids	Connection 1 Size	4.8 mm
Dimensional Weight	0.0529 lb	Connection 2 Type	Female
Connection 2 Size	7/16"-20 inch Thread	Hex Size 1	9/16 inch (see drawing legend H)
Connection Length	30 mm	Shape	Elbow 45° Short Drop
Fitting Length	1.74 inch (see drawing legend A)
