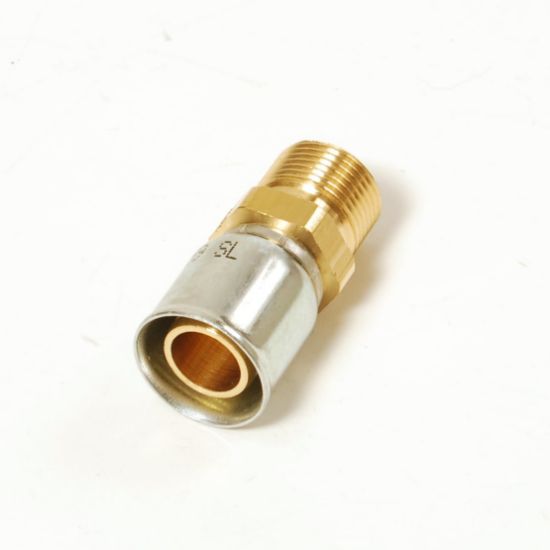

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

16191N-8-10 - Permanent Fittings for PTFE Hose - 91/91N

Name: 16191N-8-10 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 16191N-8-10
Price: 46.31 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Availability:

5 in stock

TOPEKA, KS

Partner Available:

12 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 16191N-8-10

$46.31/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	0.5"
Length (inch)	1.63"	Product Style	Compression Air Brake
Connection 2 Size	11/16"-20	Shape	Straight
Industry	General Industrial	Connection 2 Type	Male
Specifications Met	N/A	Coating	Chromium 6 Free-plated
Hex Size	n/a	Configuration	Hose to Port
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Maximum Operating Pressure	3000 psi (Dependent on hose)	For Fluid Type	Water
Connection 1 Size	12.7 mm	Connection Length	24 mm
Dimensional Weight	0.0522 lb	Body Material	Steel (Nut and Shell)
Fitting Length	42 mm	Hex Size 1	3/4 inch (see drawing legend H)
Connection 2 Size	11/16"-20 inch Thread
