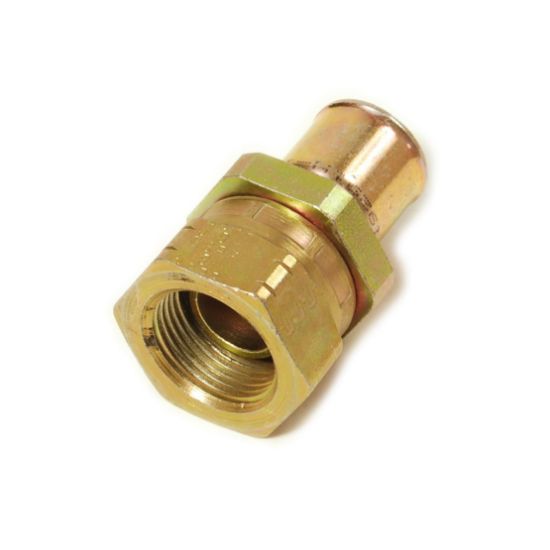

Picture of Permanent Fittings for PTFE Hose - 91/91N - 19291N-8-8

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Permanent Fittings for PTFE Hose - 91/91N - 19291N-8-8

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.
Availability:
Backordered
SKU 19291N-8-8
$65.44
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAHose I.D. (inch)0.406"
Length (inch)1.99"Product StyleFemale BSP Parallel Pipe - Swivel Straight (60° Cone)
Connection 2 SizePF-1/2"-14BrandPARKER
DivisionParflex DivisionBody MaterialSteel
ShapeStraightTechnologyFluid & Gas Handling
Specifications MetN/AApplicationSemiconductor
CoatingChromium 6 Free-platedDivisionParflex Division
Product TypeHose FittingsConfigurationHose to Port
Connection 1 Size-8 (Size)Connection 1 TypeHose
Tube Outside Diametern/aMaximum Operating Pressure3000 psi (Dependent on hose)
For Fluid TypeAir (Pneumatic Media)IndustryFood & Beverage
Product Series91NFitting Length1.99 inch (see drawing legend A)
Connection 2 TypeFemaleConnection Length33 mm
Hex Size27 mm (see drawing legend J)Hex Size 127 mm (see drawing legend H)
Connection 2 SizePF-1/2"-14 inch ThreadDimensional Weight0.0424 lb
