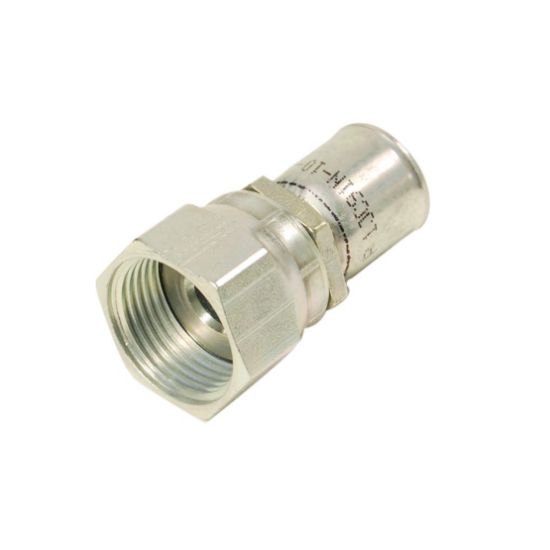

Permanent Fittings for PTFE Hose - 91/91N - 1JC91N-16-16C

Name: Permanent Fittings for PTFE Hose - 91/91N - 1JC91N-16-16C
SKU: 1JC91N-16-16C

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Availability:

Backordered

SKU 1JC91N-16-16C

$360.27

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Female Seal-Lok - Swivel - Straight - Short
Hose I.D. (inch)	7/8"	Connection 2 Size	1-7/16"-12
Length (inch)	2.56"	Brand	PARKER
Division	Parflex Division	Shape	Straight
Technology	Fluid & Gas Handling	Specifications Met	N/A
Division	Parflex Division	Application	Ultra High Purity
Product Type	Hose Fittings	Configuration	Hose to Port
For Fluid Type	Oil	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Dimensional Weight	0.0235 lb
Coating	n/a	Hex Size	1-3/8 inch (see drawing legend J)
Industry	Healthcare & Life Sciences	Body Material	n/a
Product Series	91N	Maximum Operating Pressure	20.7 MPa
Connection 1 Size	22 mm	Connection 2 Type	Seal-Lok®
Connection 2 Size	1-7/16"-12 inch Thread	Hex Size 1	1-5/8 inch (see drawing legend H)
Fitting Length	2.00 inch (see drawing legend A)	Connection Length	27 mm
